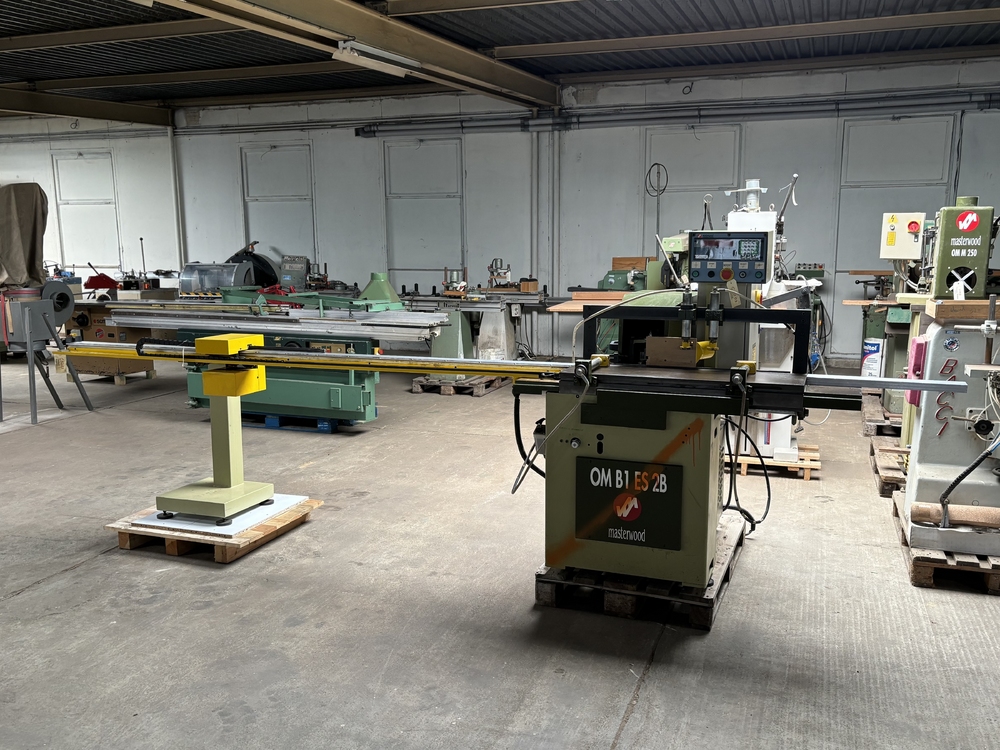

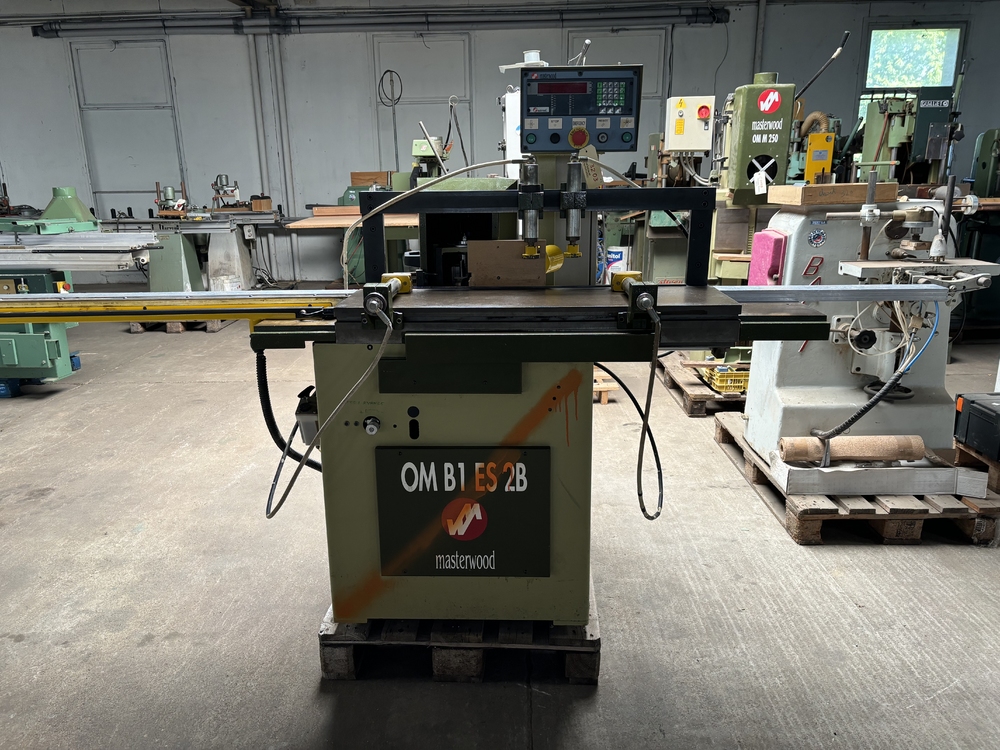

3-axis controlled mortising machine

Max. machinable solid part size : 275 x 160 mm

Max. mortising depth : 130 mm

Hydraulic motor : 0.75 kW

Work table :

Dimensions : 1000 x 310 mm

Longitudinal travel : 400 mm

Cross travel : 150 mm

2 extensions, length 1200 mm

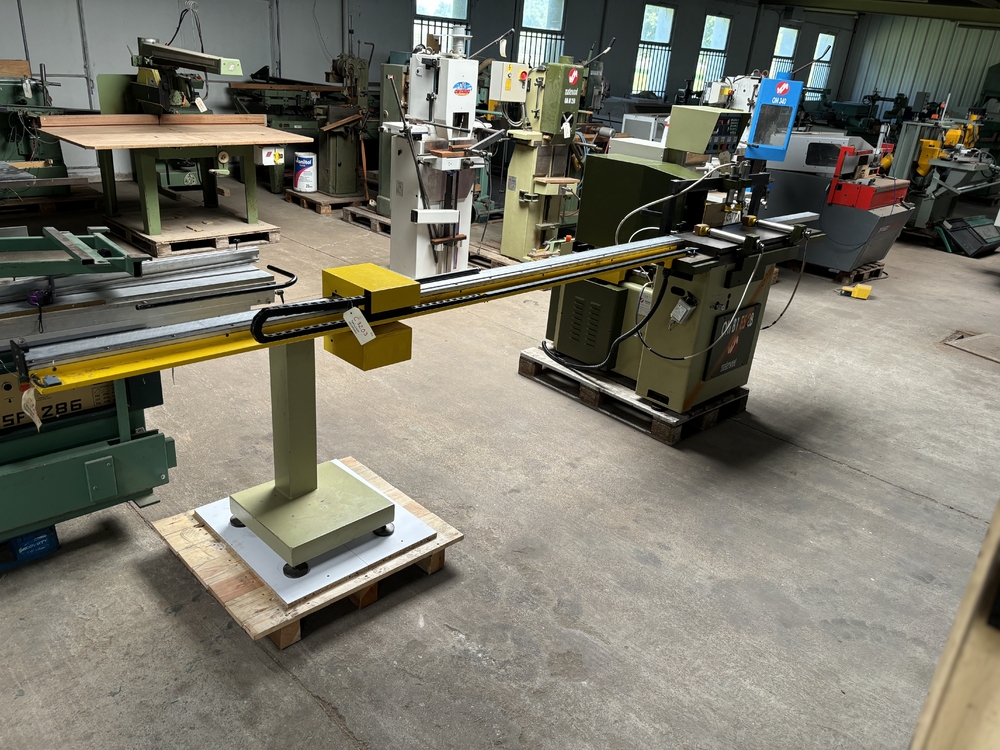

Extension with electronic stop : 2600 mm

Electronic stop travel speed : 40 m/min

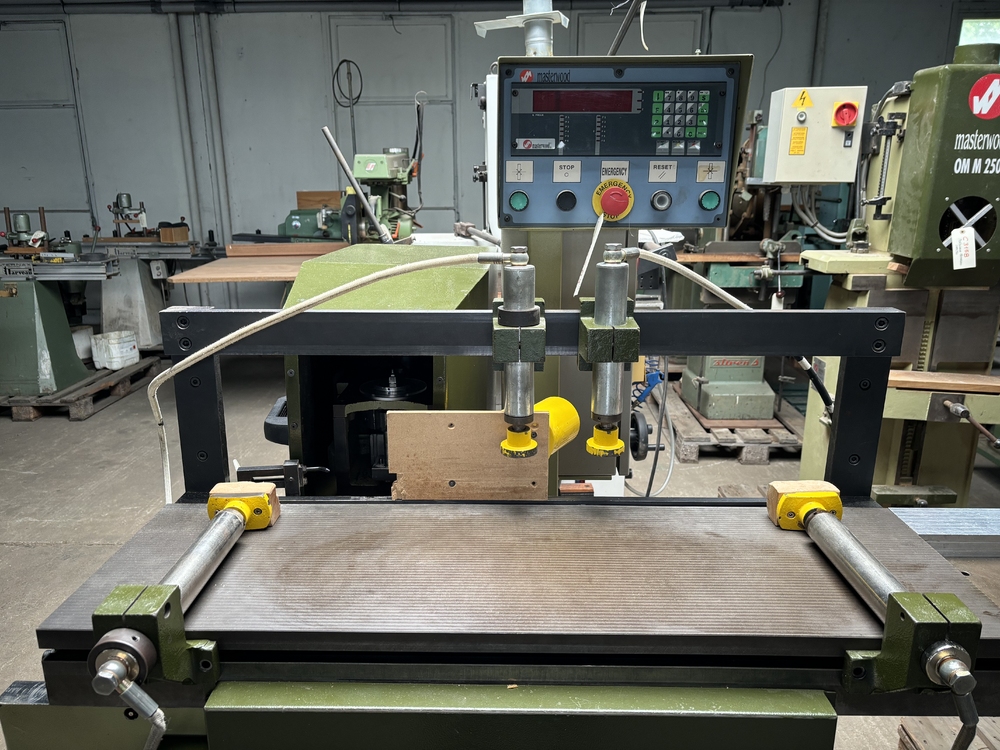

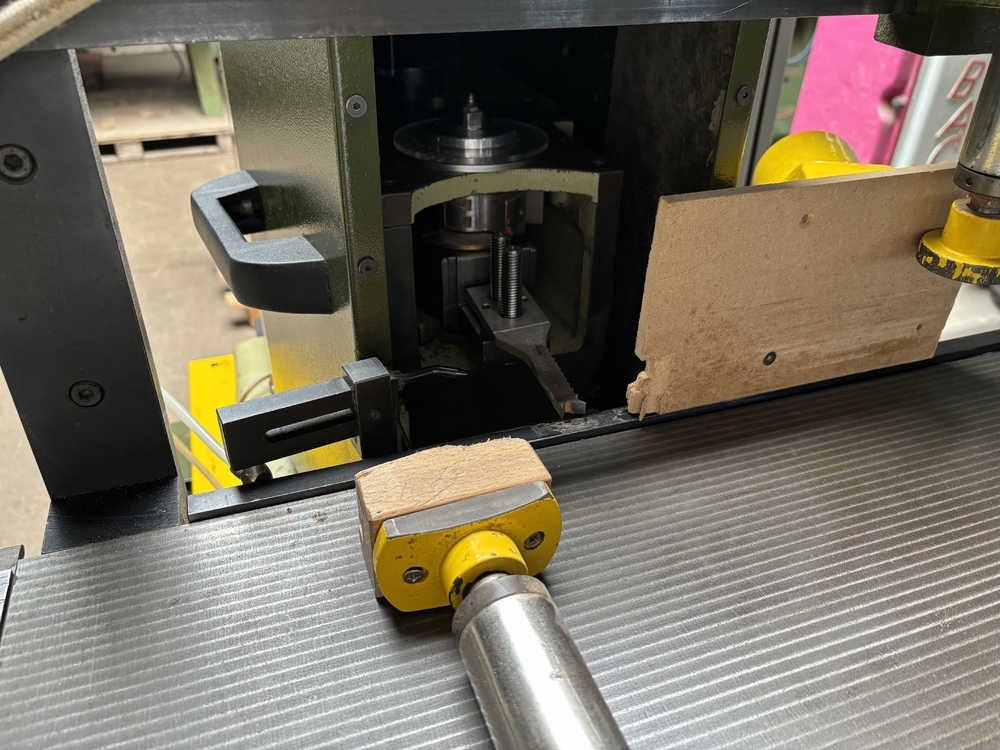

Workpiece clamping with hydraulic pistons (2 front and 2 vertical)

Mortising heads :

Manual vertical adjustment

Motorized vertical adjustment

Vernier for quick calculation of chisel oscillation angle

2.2 kW motor

Pneumatic circuit operating pressure : 6-8 bar

Upper suction mouth diameter : 80 mm

Suction speed : 25-30 m/sec
