Works with IDRACAM software

Axis X, course 3550 mm
Axis Y, course 1100 mm
Axis Z, course 425 mm

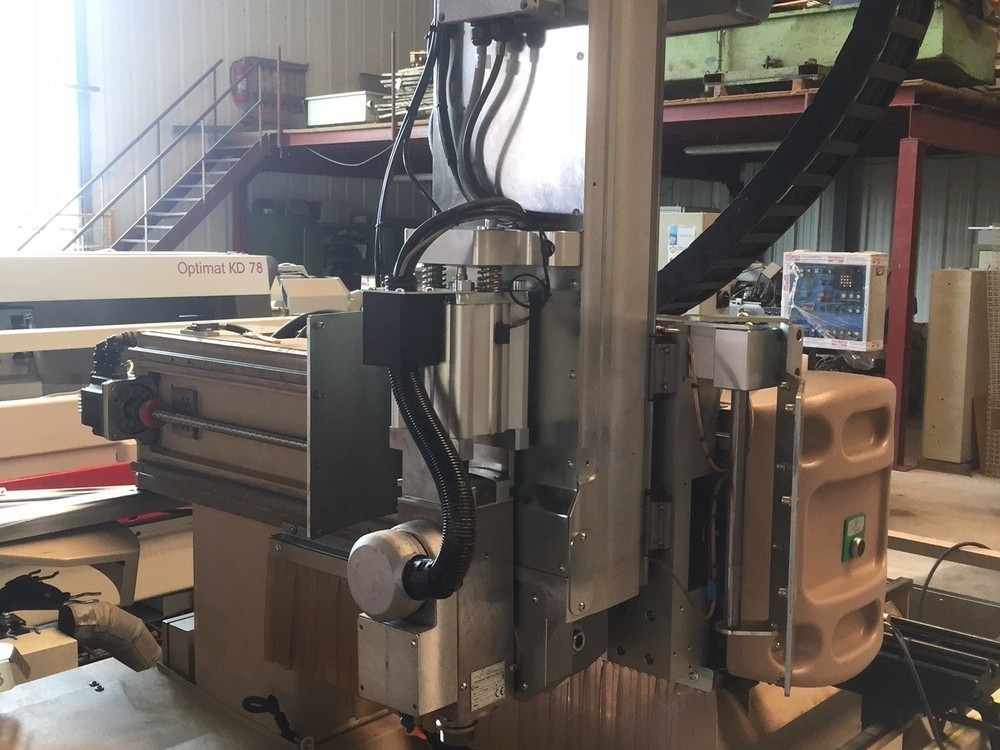

Electrospindle rotation : 0°/90°/180°

Work capacity :
Axis X = 3500 mm
Axis Y = 540 mm with electrospindle in vertical position at 90°
Axis Y = 460 mm with electrospindle in horizontal position 0° or 180°
Axis Z = 300 mm with electrospindle in vertical position at 90°
Axis Z = 250 mm with electrospindle in horizontal position 0° or 180°

Axis displacement :
Axis X : 80 m/mn, acceleration 2,8 m/s
Axis Y : 25 m/mn, acceleration 2,8 m/s
Axis Z : 25 m/mn, acceleration 2,8 m/s

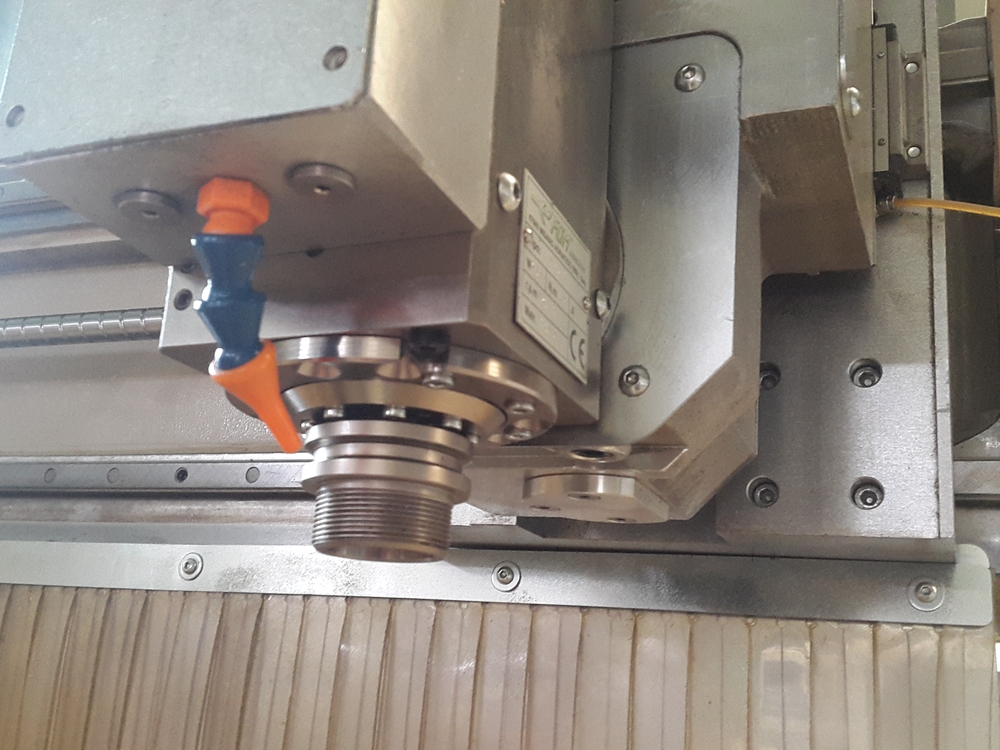

Spindle : ISO 30
DIN 69871
Power : 4 kW
Rotation speed : 12000 tr/mn

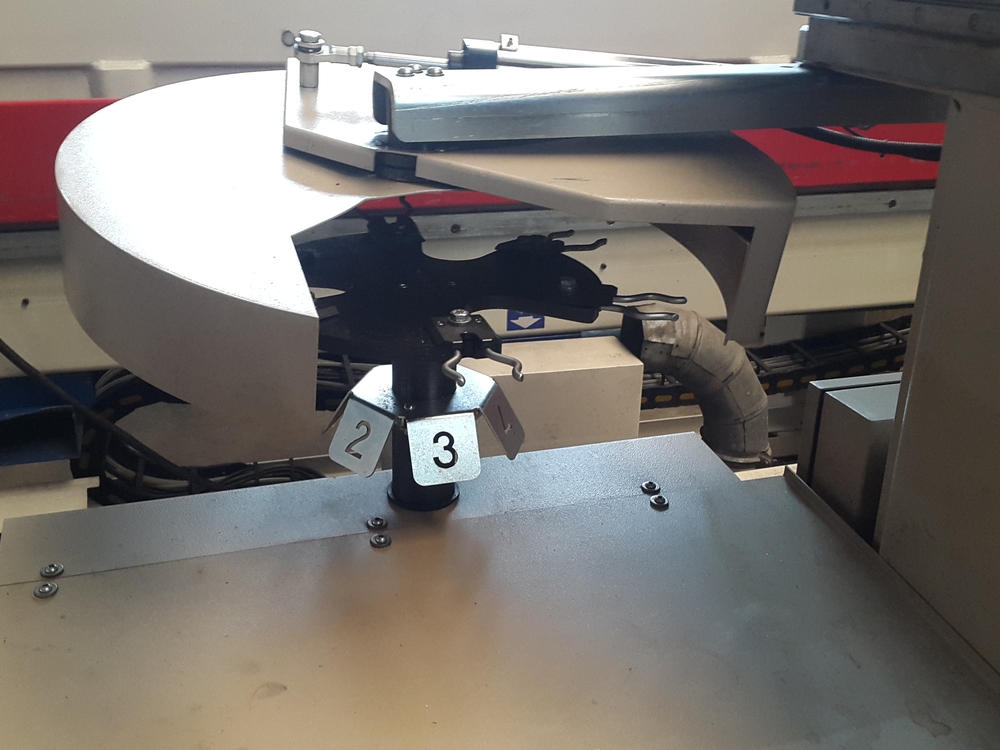

6 tool holder charger
tool changing time : 8 secondes

Maximum tool weight : 5 kg
Max tool diameter : 220 mm

Air Pressure : 7 bars

Machine at CE normatives
