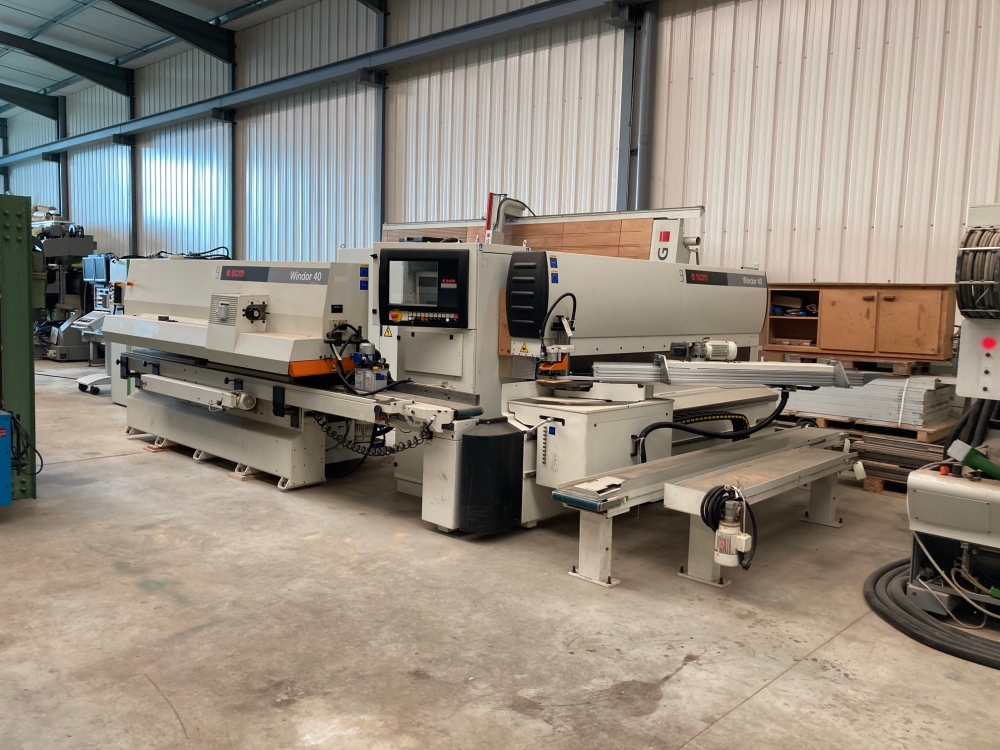

Technical characteristics :
- Max machinable length 3200 mm
- Minimum machinable length 200 mm
- Maximum width 200 mm
- Minimum width 40 mm
- Maximum workpiece height 130 mm
- Depth with max Ø to tenon 320 mm: 105 mm
- Tenoning carriage speed min / max 0/100 m / min
- Min / max profiling speed: 3/15 m / min

Tenoning:

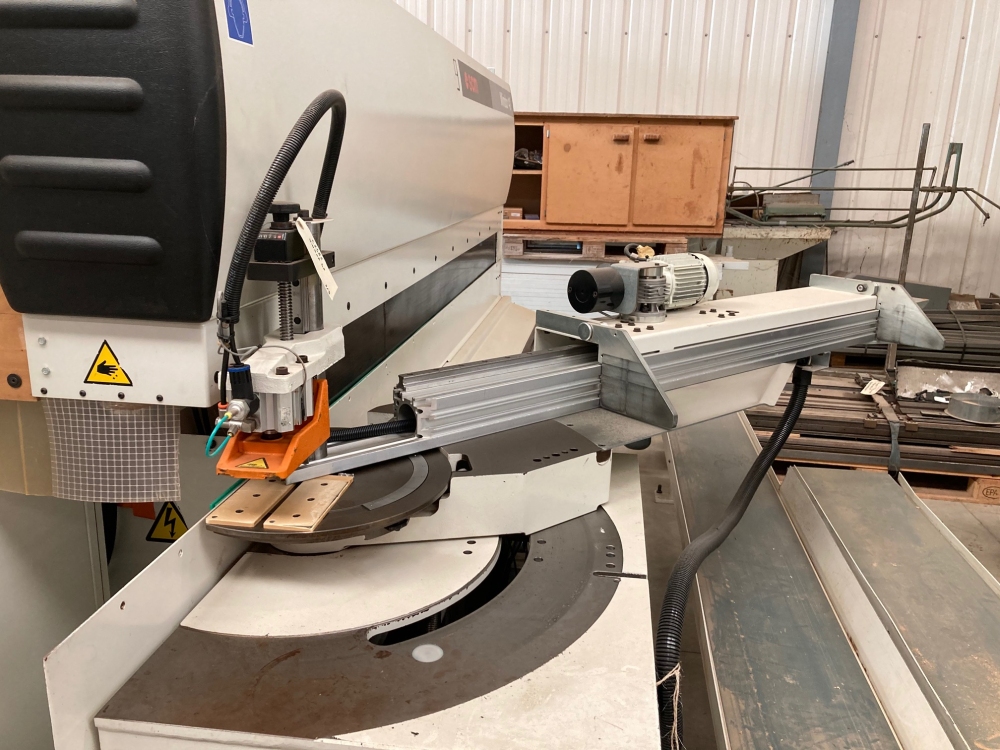

1- end cut saw
5.5 hp (4 kW)
Saw Ø 400 mm

2- tenoning router
Counter bearing 50 x 620 mm
15 hp (11.3 kW)
Max tool Ø 320 mm
Axle stroke 575 mm
Automatic splinter guard

3- tenoning router
Counter bearing 50 x 620 mm
15 hp (11.3 kW)
Max tool Ø 320 mm
Axle stroke 575 mm
Automatic splinter guard
Vertical positioning with continuous axis

4- Digital angular adjustment clamp

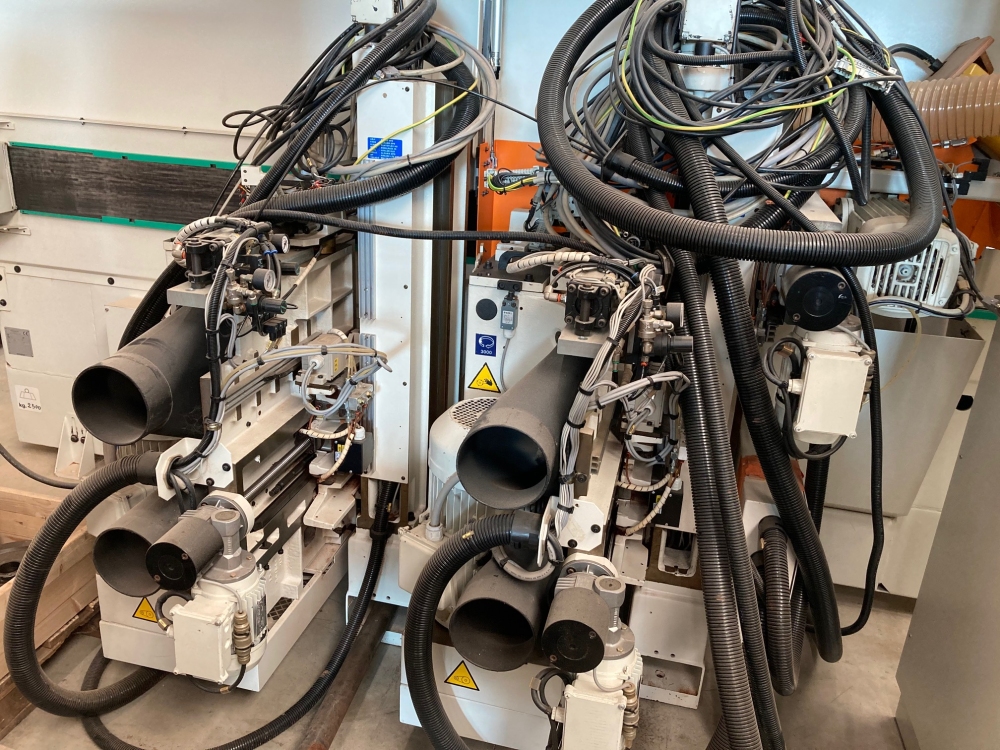

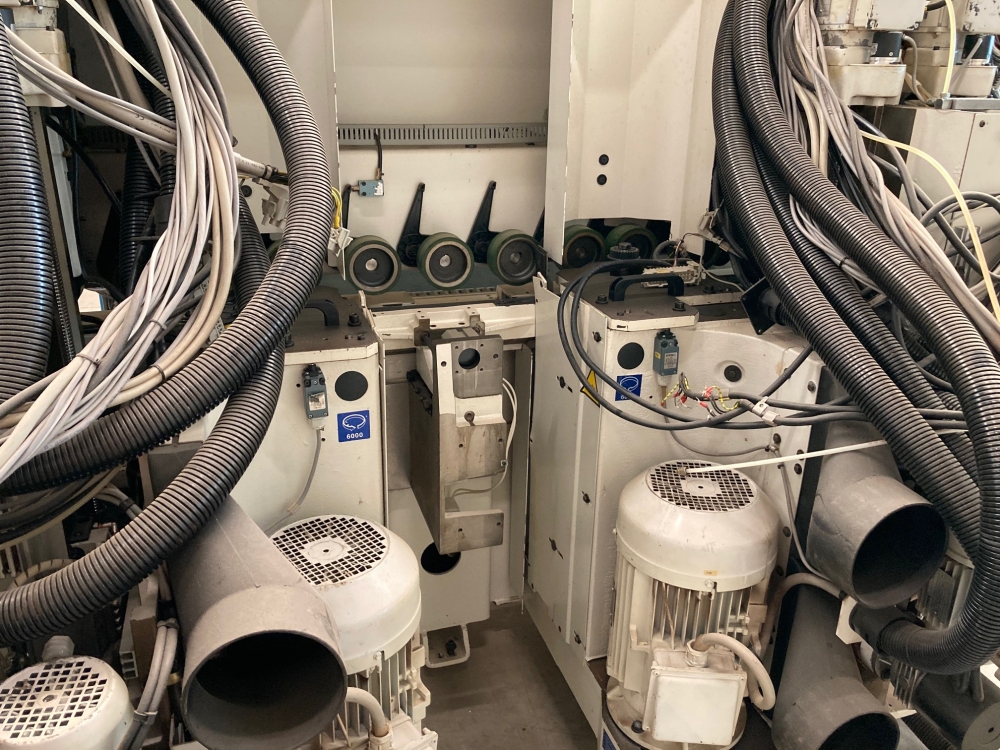

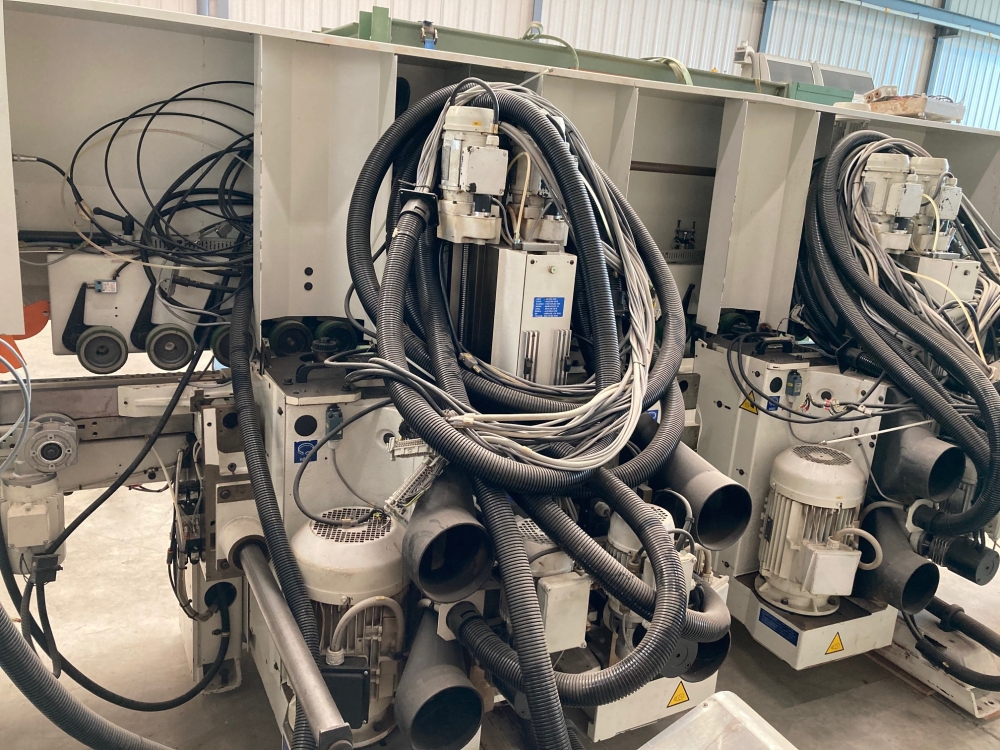

Profiling:

5-: router to be profiled on the right
Shaft 50 x 320 mm
10 hp (7.5 kW)
Ø tools 130/240 mm
Axle stroke 280 mm
Time-delayed anti-shattering intervention during calibration
Double direction of rotation
Vertical and horizontal positioning with continuous axis

6-: router to be profiled on the right
Shaft 50 x 320 mm
10 hp (7.5 kW)
Ø tool 130/240 mm
Axle stroke 280 mm
Vertical and horizontal positioning with continuous axis

7-: router to be profiled on the right
Shaft 50 x 320 mm
10 hp (7.5 kW)
Ø tool 130/240 mm
Vertical and horizontal positioning with continuous axis

8-: close-out recovery group
Vertical and horizontal positioning with continuous axis
Device for extracting the shutter

9-: lower horizontal shaft for groove
Vertical and horizontal positioning with continuous axis
88.5 hp (66.4kW)

10-: digital guide

11-: Return of parts to the operator
