Workpiece length max: 5200 mm - for tool Ø 25: 5375 mm
Workpiece width max: 1400 mm - for tools Ø 25 mm: 1550 mm
Workpiece thickness 300 mm max up to 60 mm with a standard clamping device

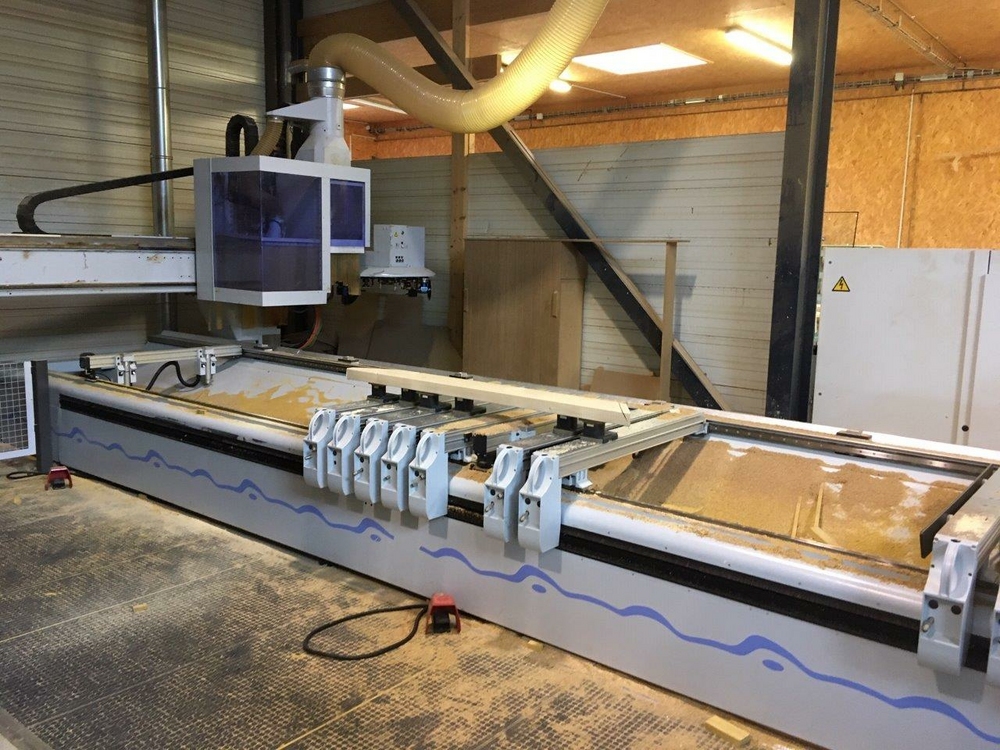

Console table: consoles with front stop 8 units
Rear stop (fixed) 4 units
Lifting rails
Console length 1340 mm
Side stops left 2 units - right 2 units

Suction cups 160 x 115 x 100 mm 16 units
Suction cups 125 x 75 x 100 mm 8 units

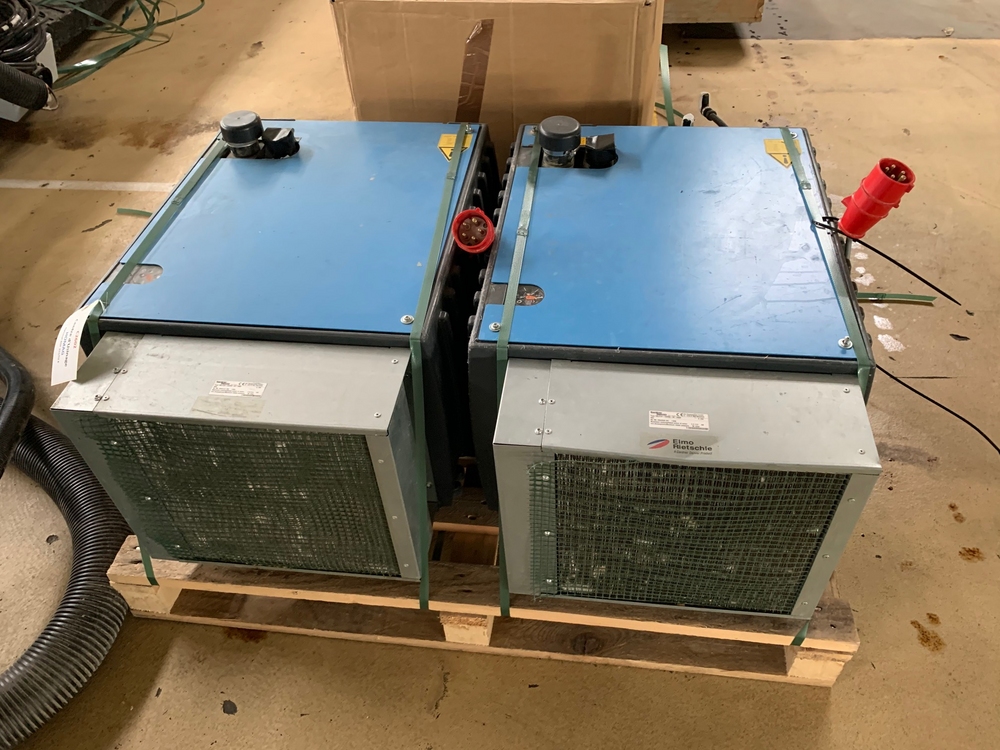

Vacuum pump 140 m3 / h

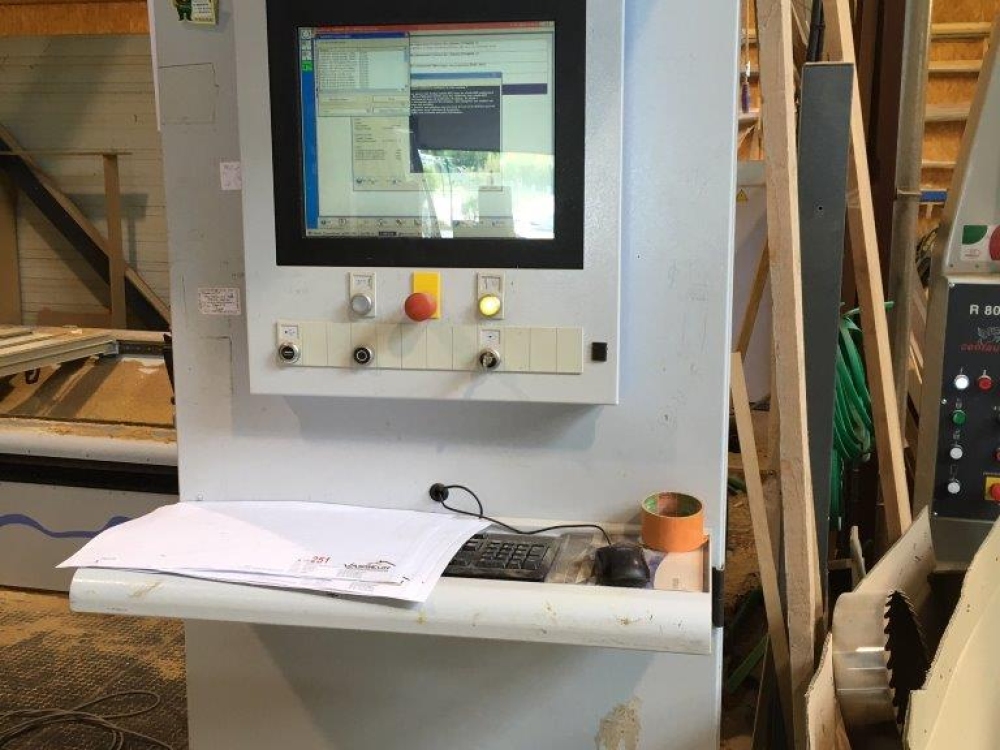

Modern control system from a WINDOWS computer
WINDOWS XP operating system
Industrial pc
17 inch flat screen
Ethernet network connection
WOODWOP program

Voltage 400 V 50/60 HZ

Additional vacuum pump 100 m3 / h

Chip conveyor belt

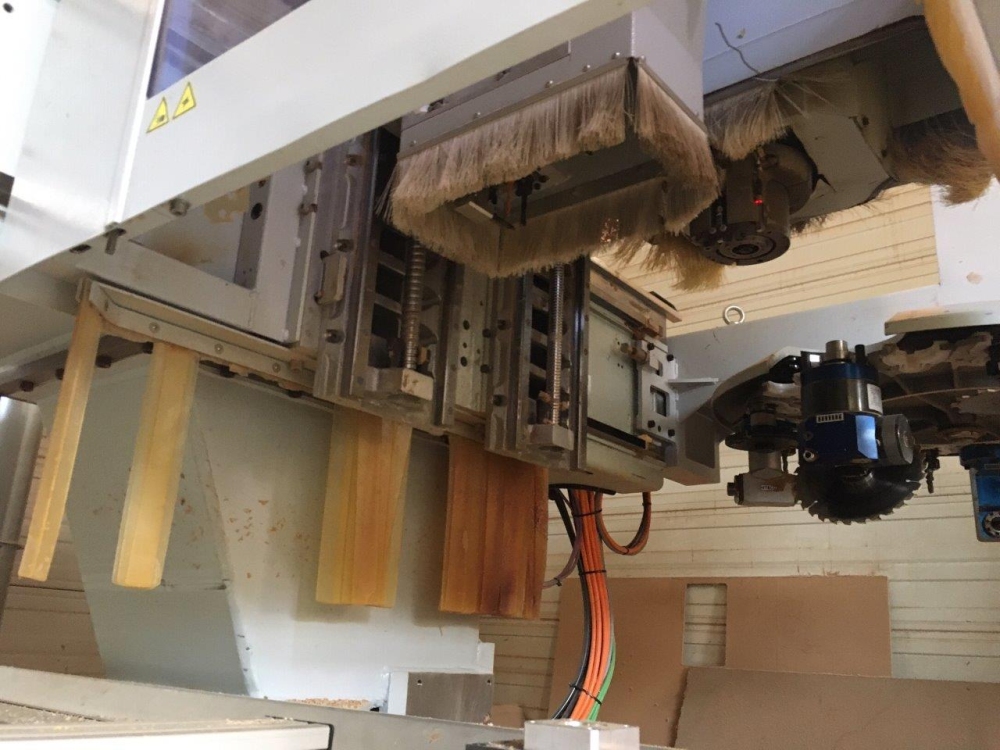

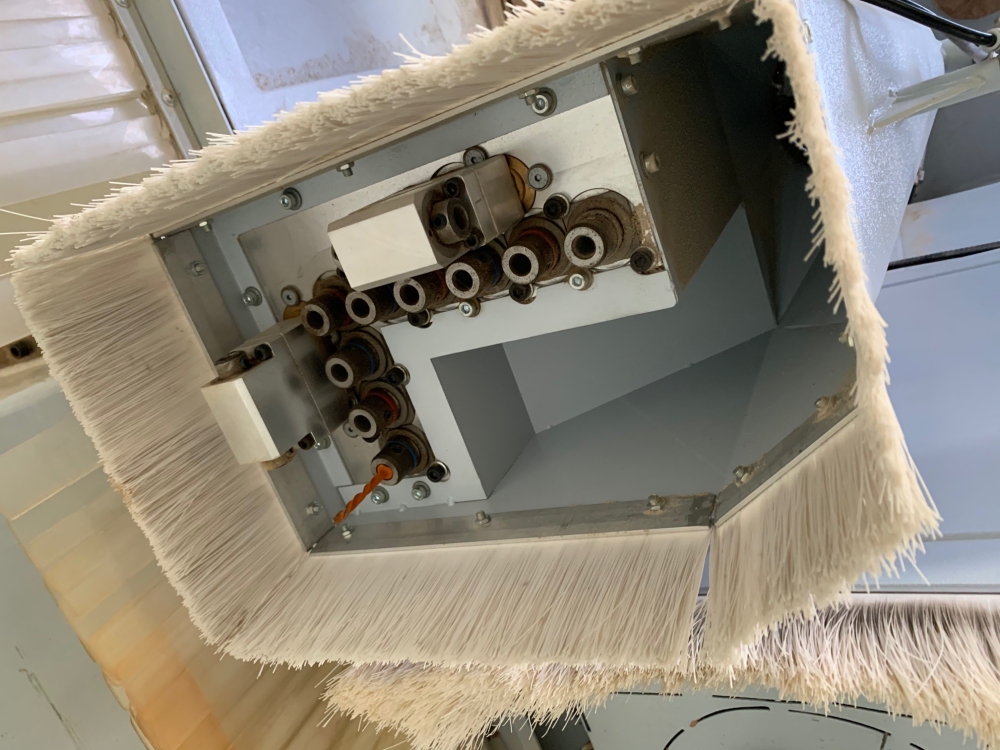

13-spindle drilling head
9 vertical
6 x drilling spindles
4 Y-drilling spindles
4 horizontal spindles
2 pins in X
2 Y-pins

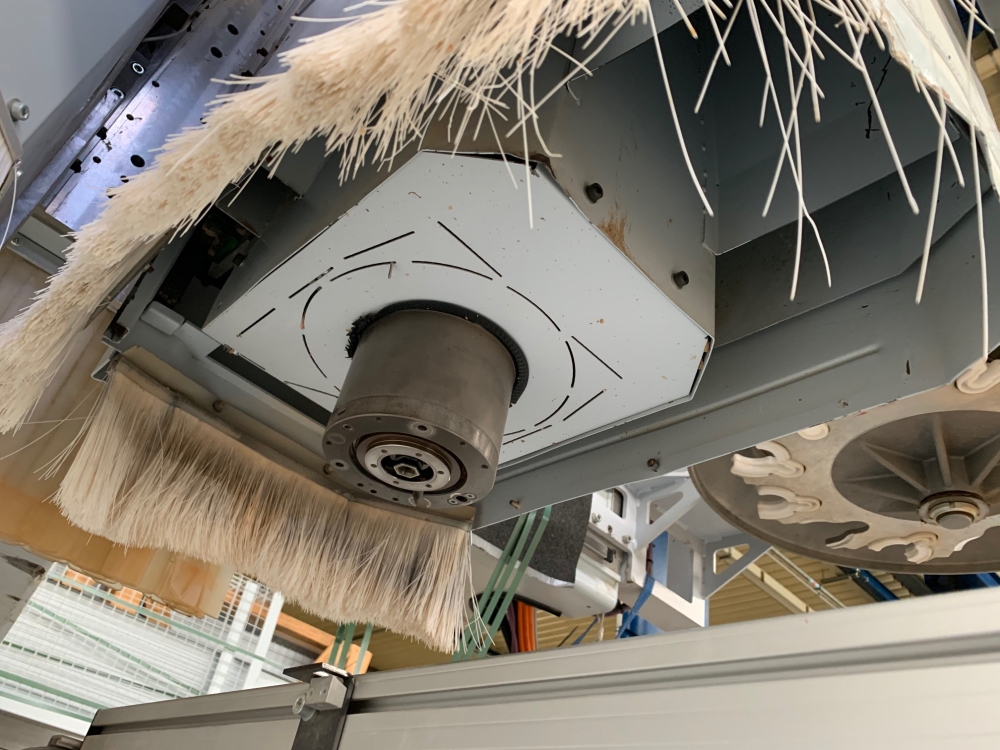

Main spindle 11kW
HSK F63

Liquid cooling
1000/24000 rpm
Ø of tools 180 mm max

C axis including C axis tilt drive

Unlimited swivel range

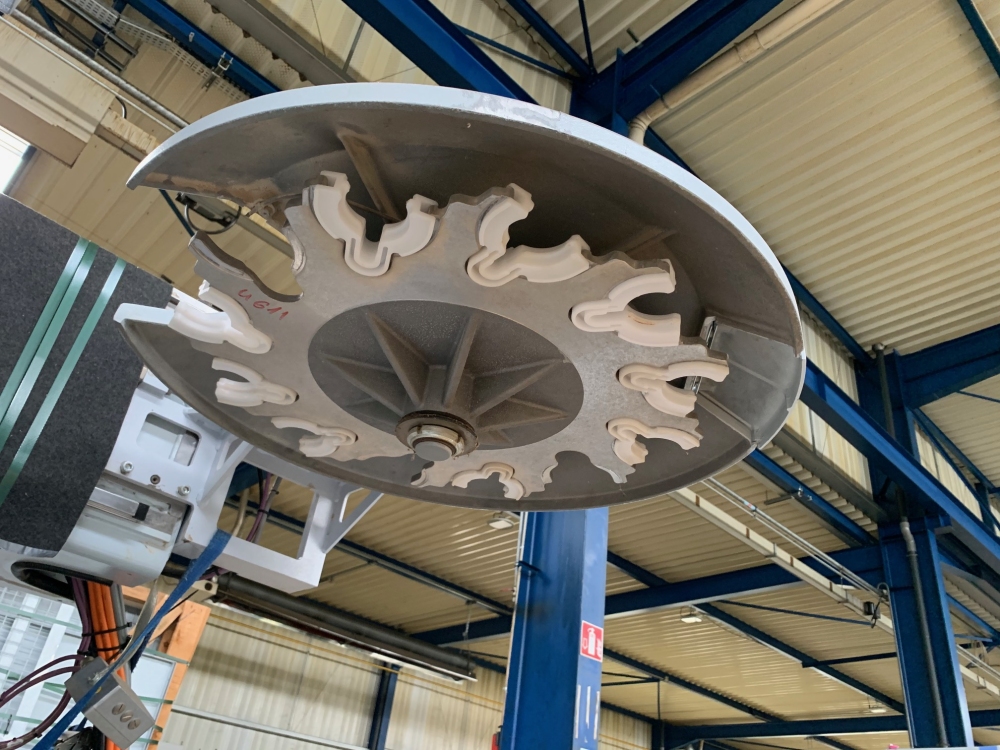

12-station tool changer Ø 135 mm
CONSOLE LED positioning system
