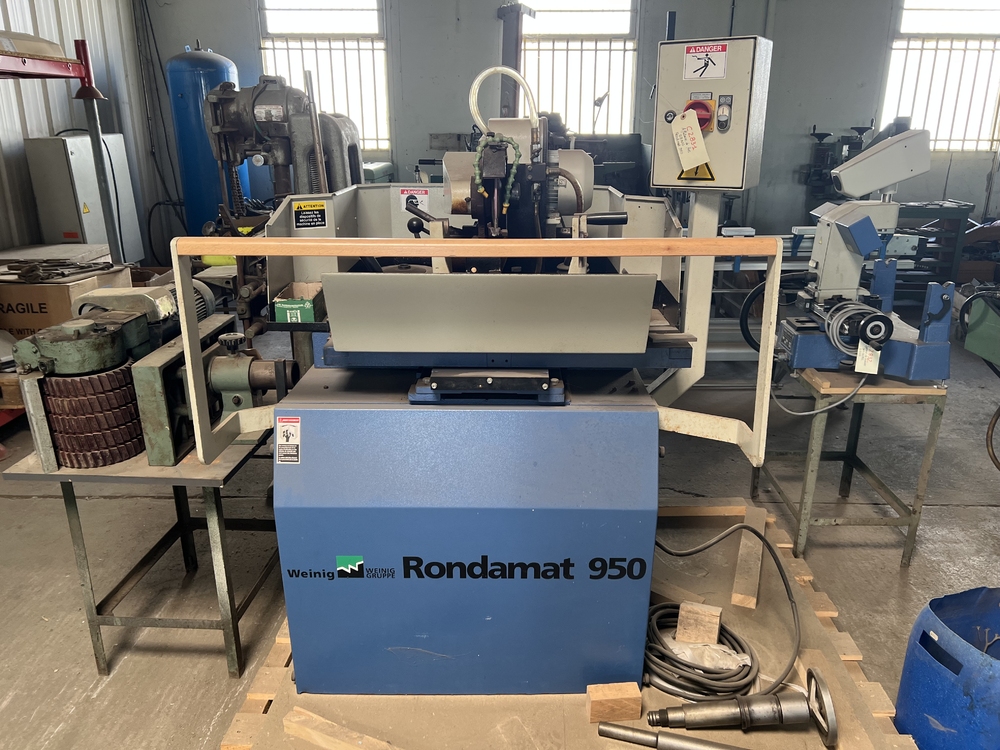

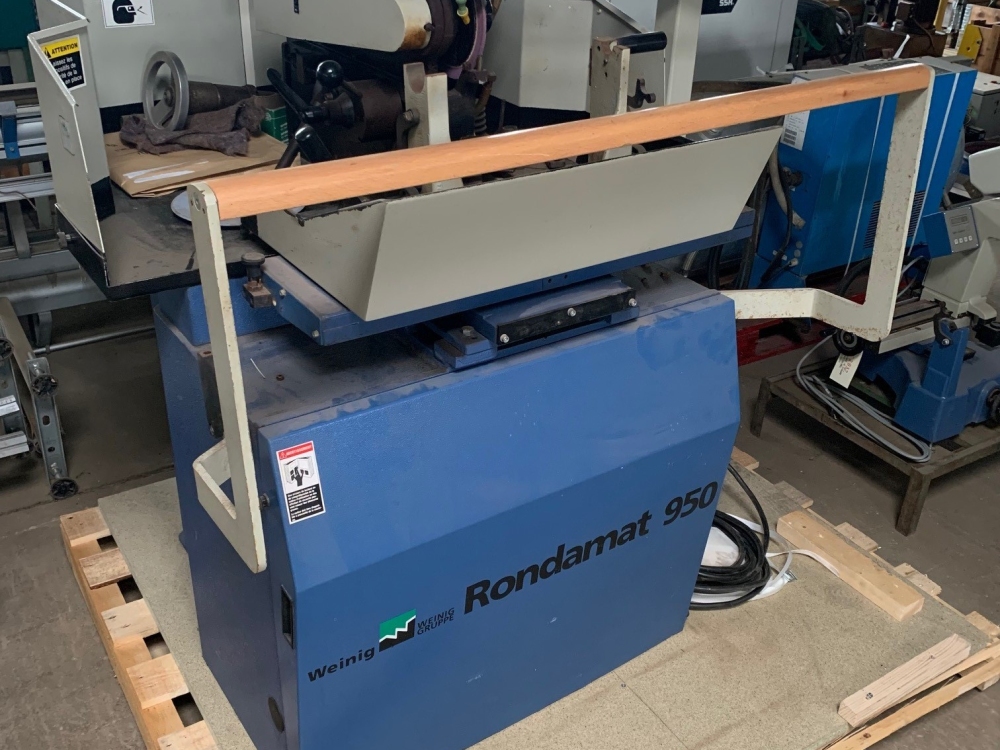

Affûteuse WEINIG RONDOMAT 950

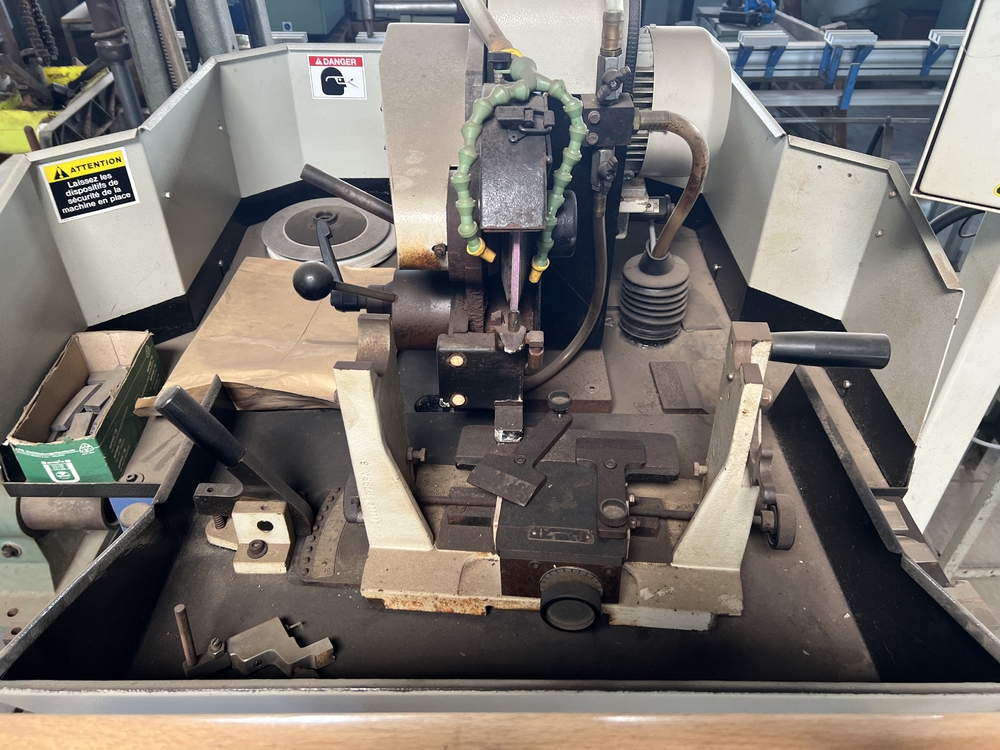

Sharpening and manufacturing of profiled irons from raw irons

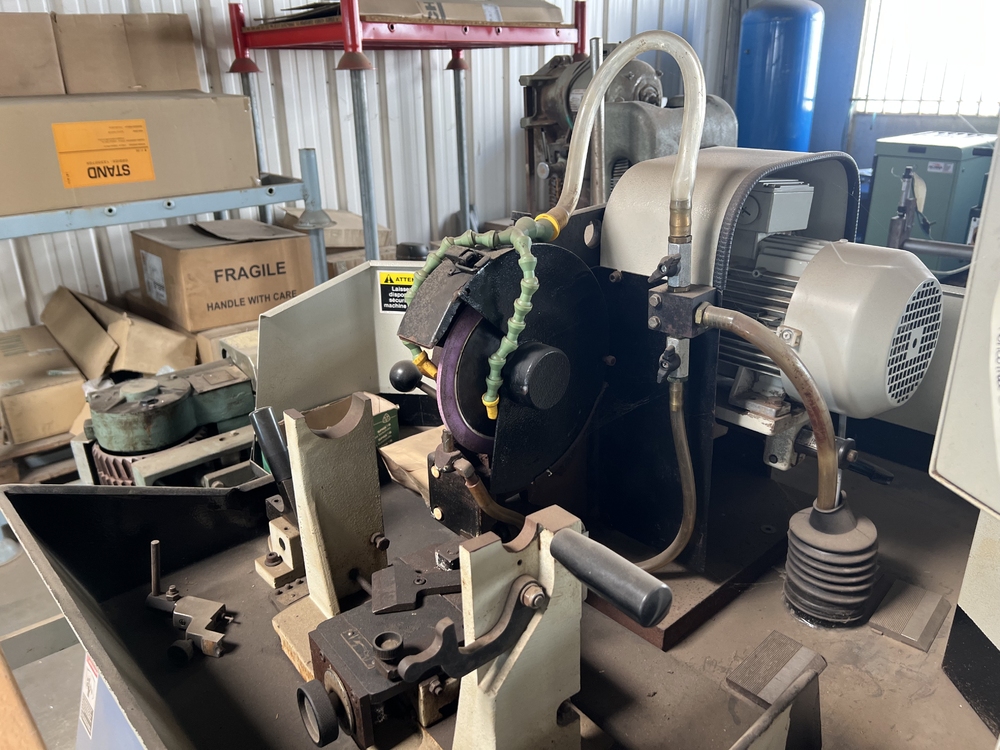

Max. grinding wheel diameter : 225 mm

Quick clamping

Widths : 2 ; 3 ; 4 ; 10 mm

Bore 60 mm

4 rotation speeds : 1500, 1700, 2400 and 3000 RPM

Clearance angle : 15° to 35

Cross-bearing table

Tool holder

Cutting diameter : 100 to 230 mm

Tool width : 240 mm

Copying device with constant axial system

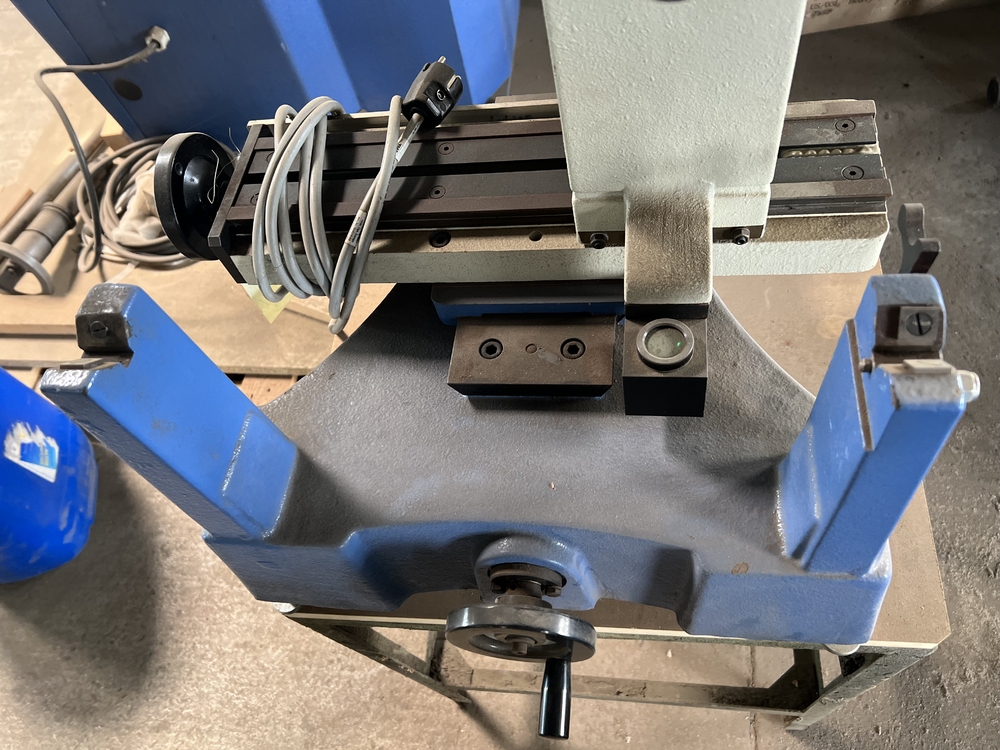

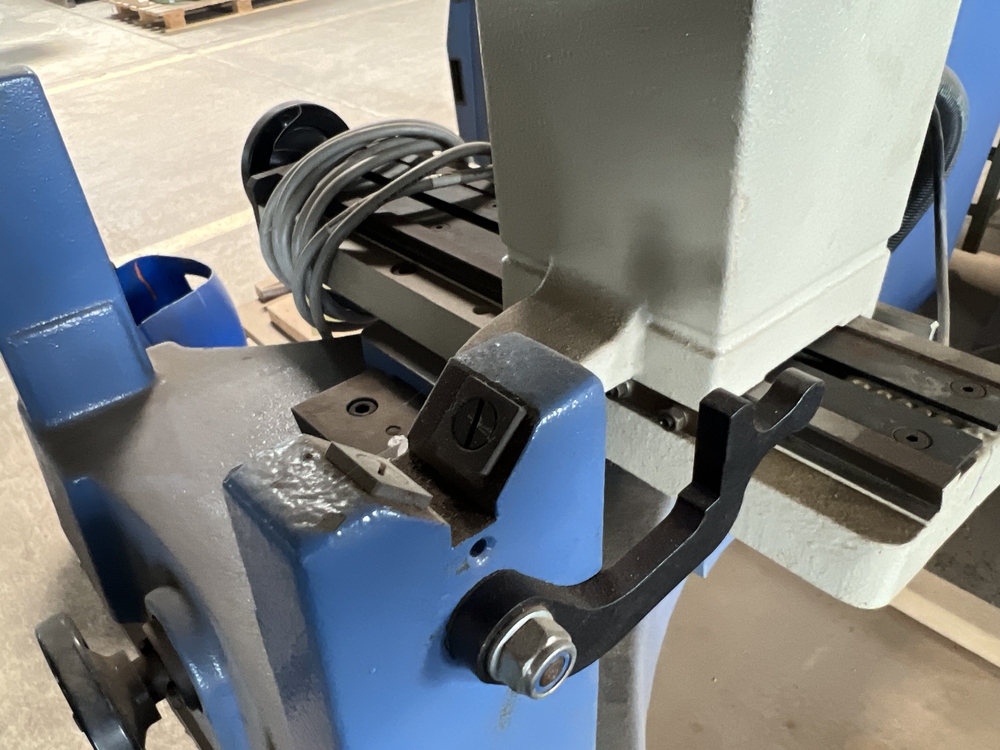

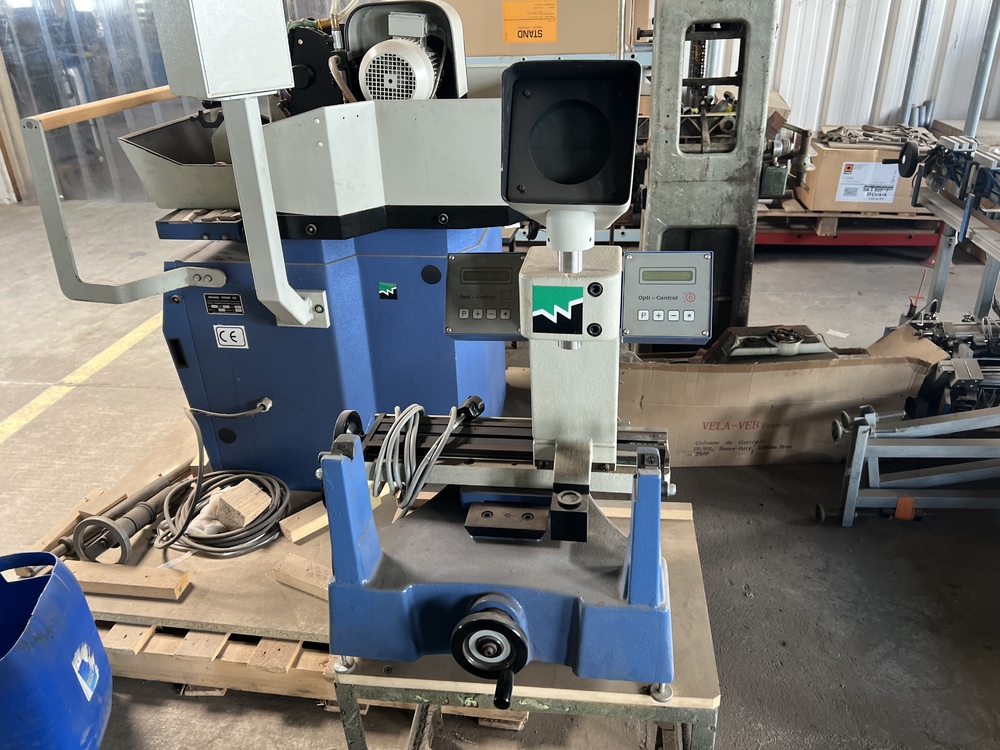

Système de mesure OPTICONTROL

Flying circle diameter : 0 to 300 mm

Tool length : 0 to 330 mm

Shaft diameter 40 mm

Electronic digital display of tool radius and height

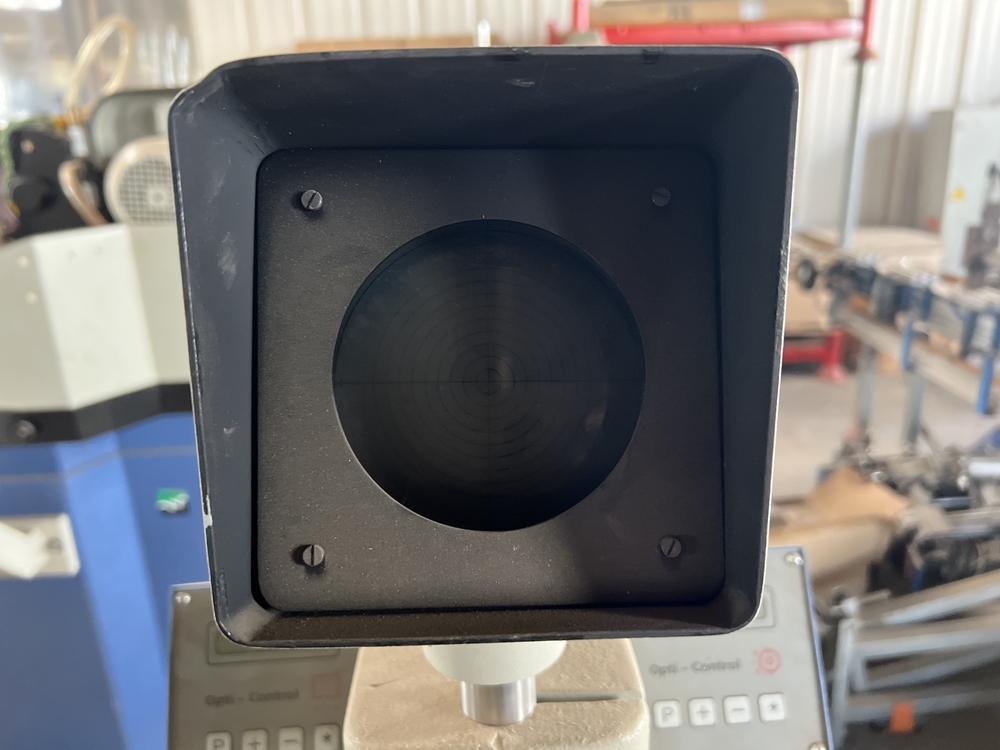

Projector for optical data acquisition

Measurement and display system for optical tool measurement

Checks correct positioning of cutters on heads
