AXIS TRAVEL

 X AXIS (longitudinal) (mm) 4300

Y AXIS (cross) (mm) 270

Z AXIS (vertical) (mm) 300

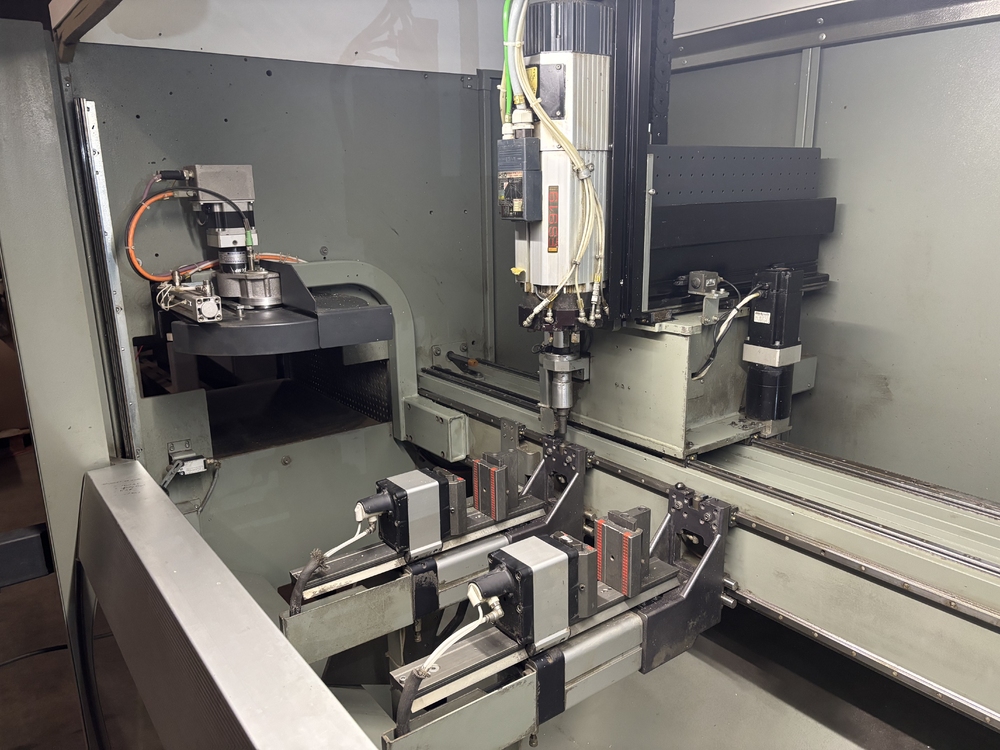

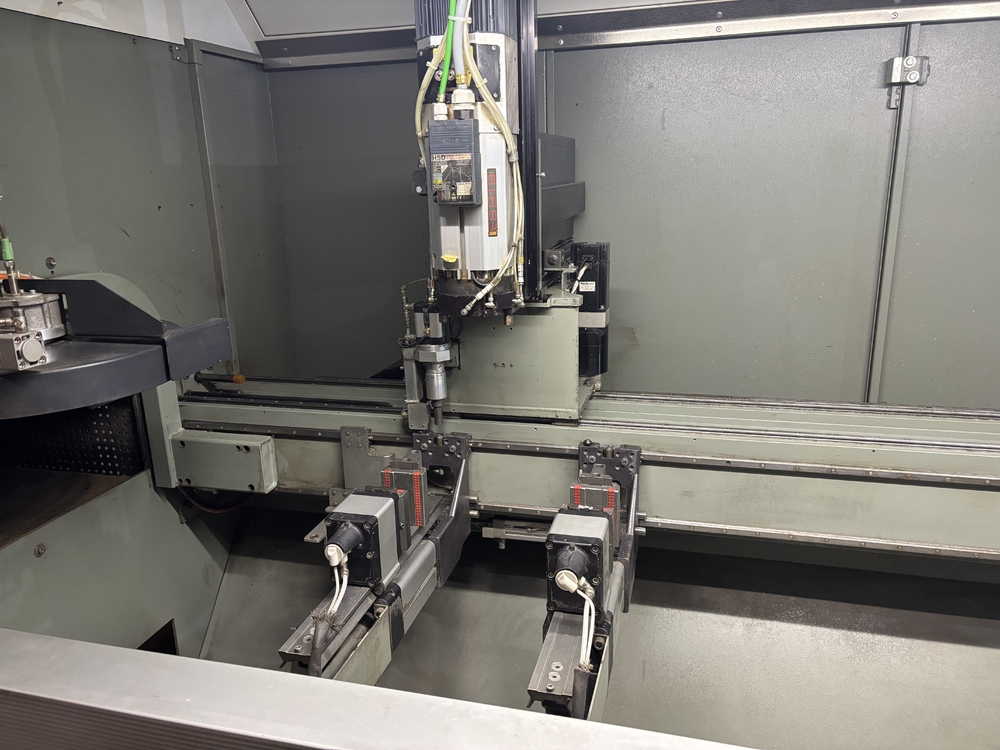

ELECTRO-SPINDLE Max. power rating (S1) (kW) 5,5 Max. power rating

 Max. speed (rpm) 20000

Tool taper HSK 63F

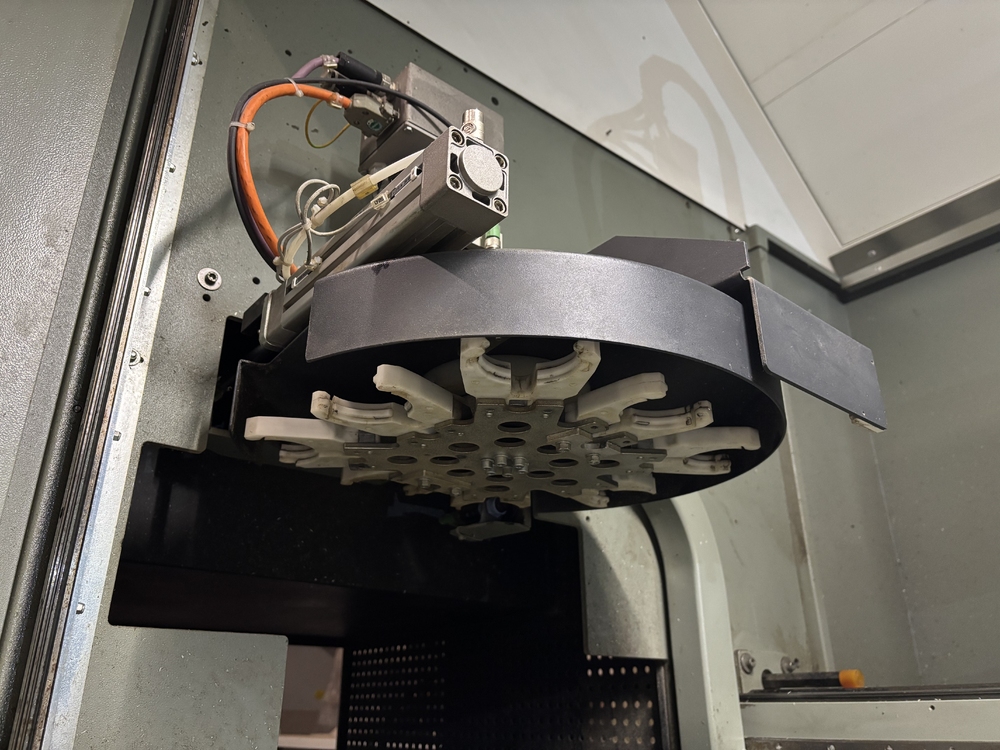

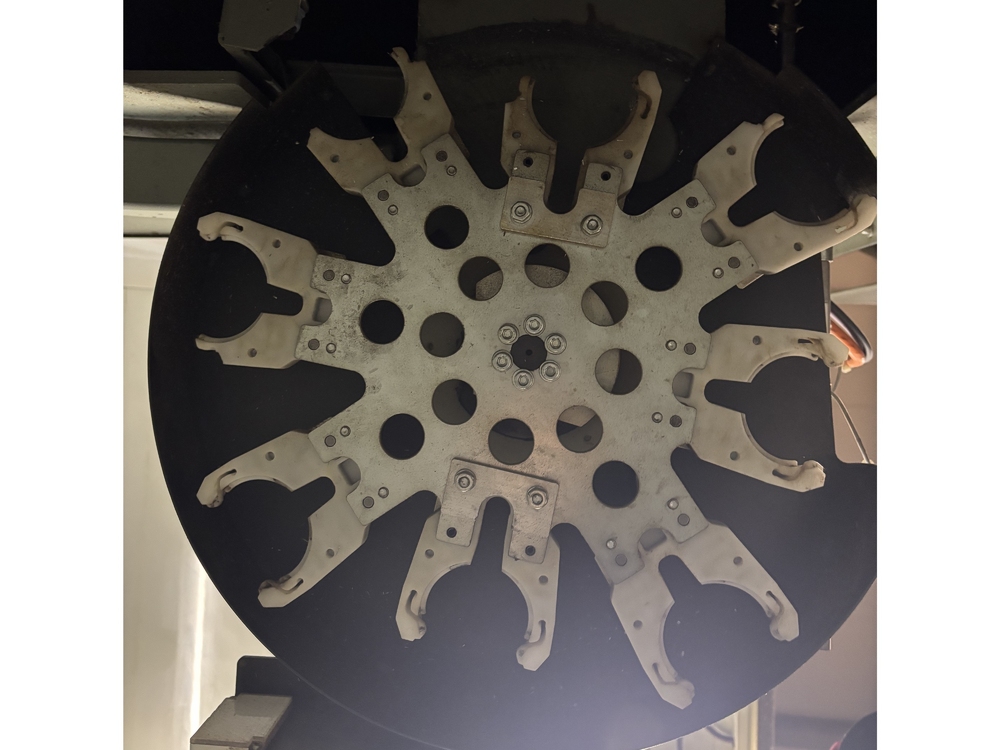

AUTOMATIC TOOL MAGAZINE Max. number of tools in the tool magazine 4 standard

 Max. number of angle machining heads loadable in the tool magazine 2

 Max. blade diameter loadable in the tool magazine (mm) Ø 180

FUNCTIONS Multi-piece operation

MACHINABLE FACES With straight tool (top face) 1 With angle machining head (side faces and ends) 2 + 2 With blade tool (side faces and ends) 2 + 2

TAPPING CAPACITY (with tap on aluminium and through hole) With compensating chuck M8 Rigid

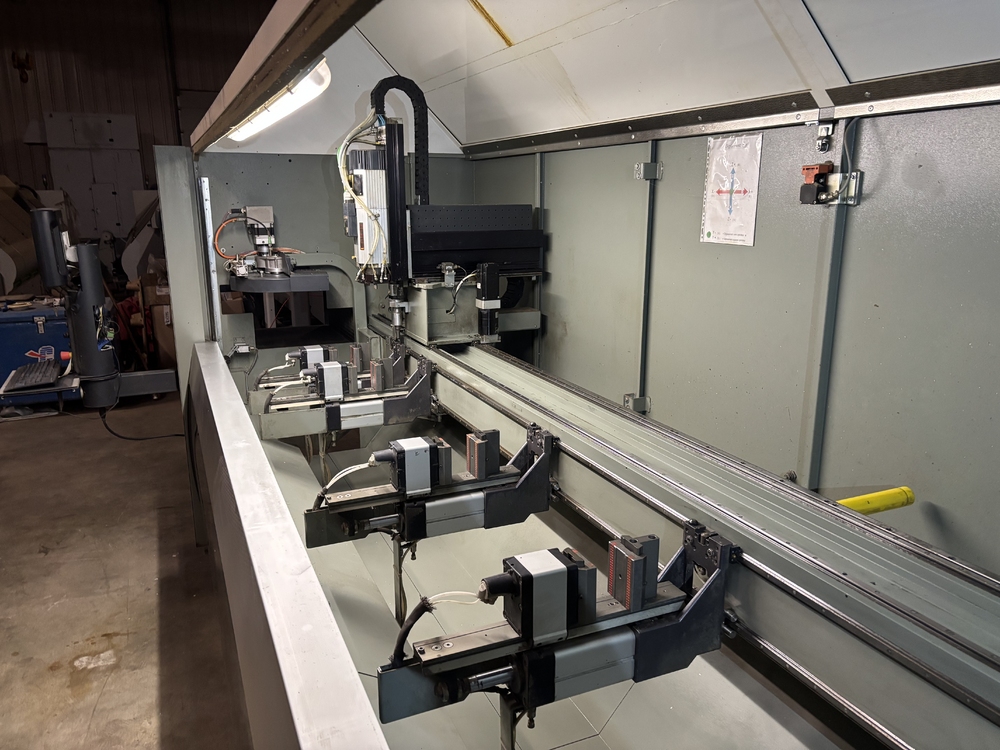

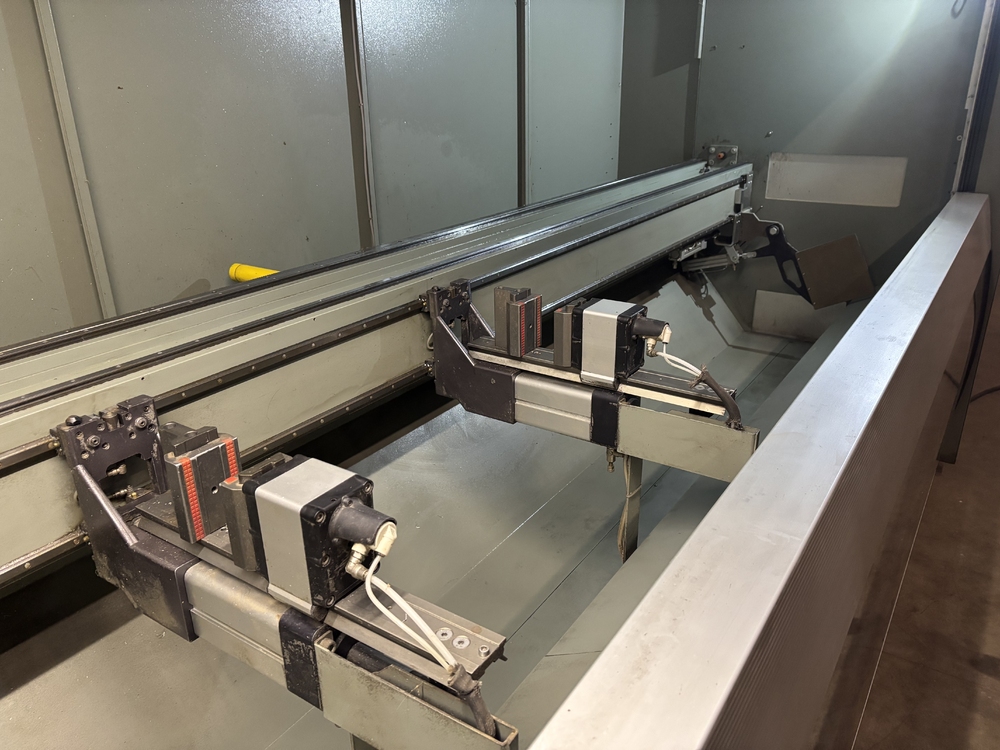

 WORKPIECE CLAMPING Standard number of vices 4 Max. number of vices 6
