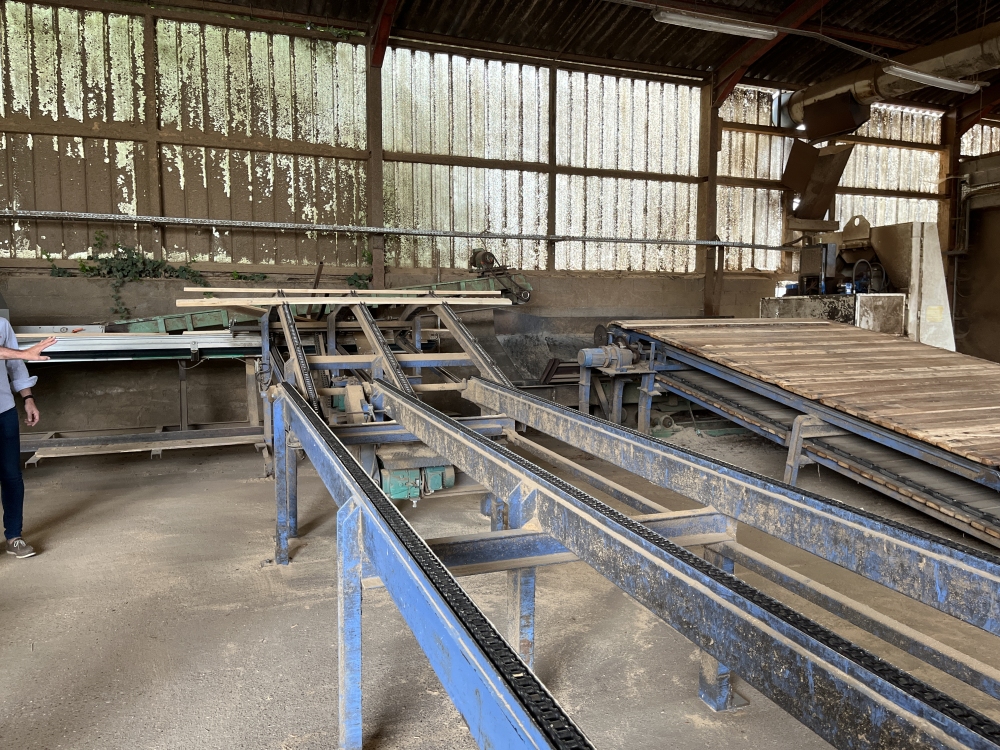

4-strand chain introduction deck (optional)

3-strand decoder (optional)

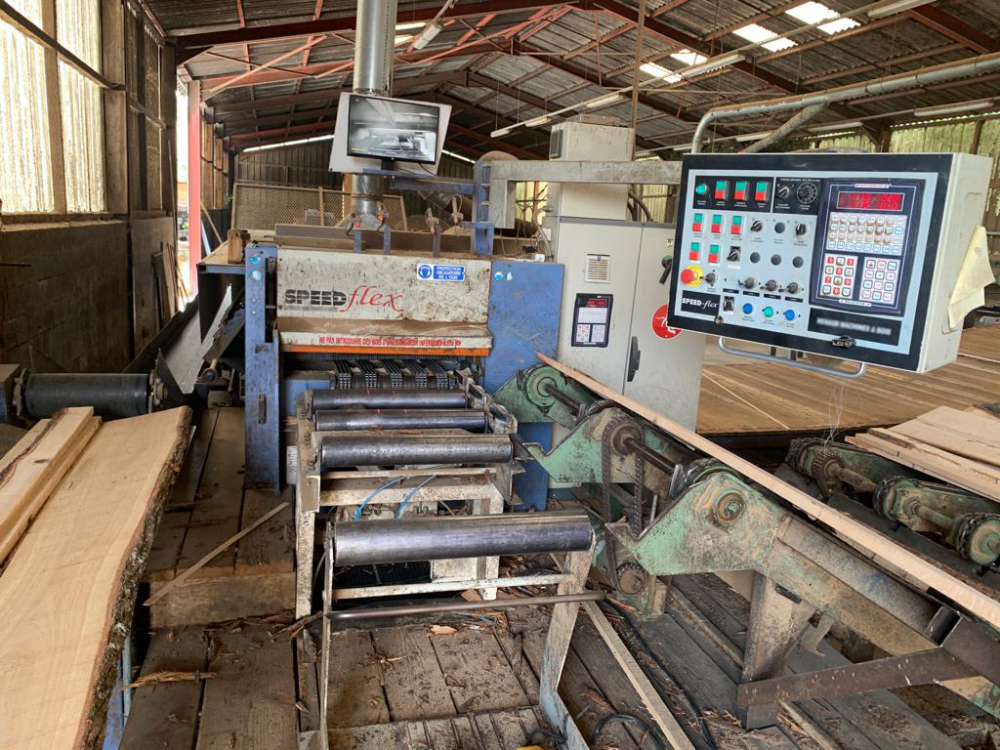

High performance edger SPEEDFLEX : (Ref C2985)

Free roller infeed table

Retractable guide aligned to the fixed blade

Horizontal roller press

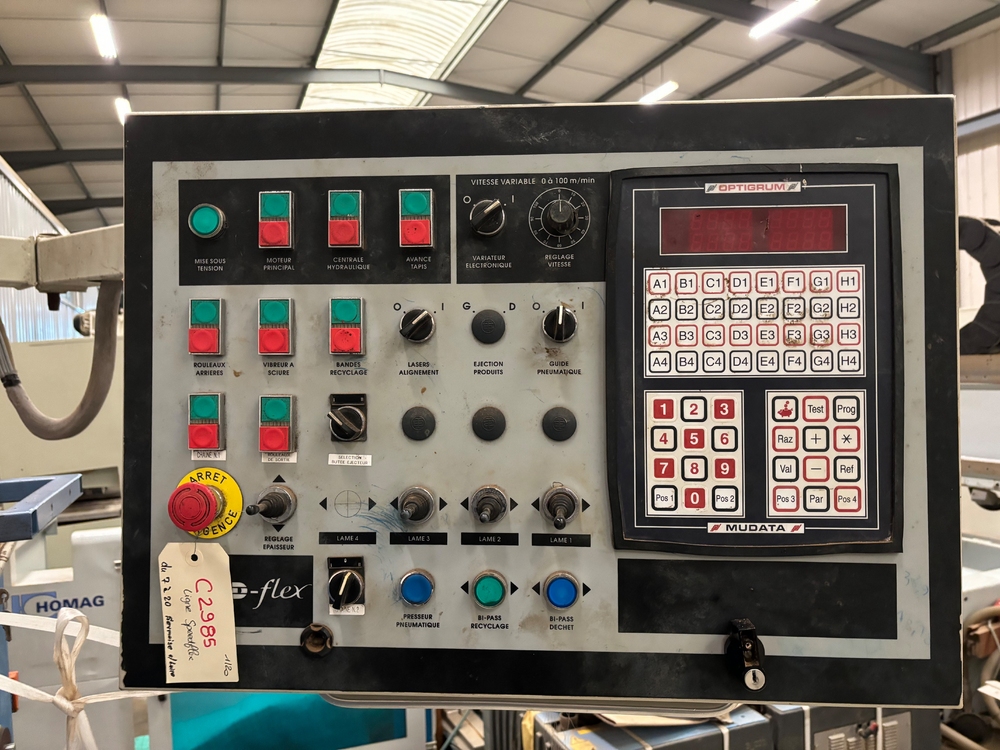

1 fixed blade + 3 mobile blades controlled by MUDATA 3 axis division.

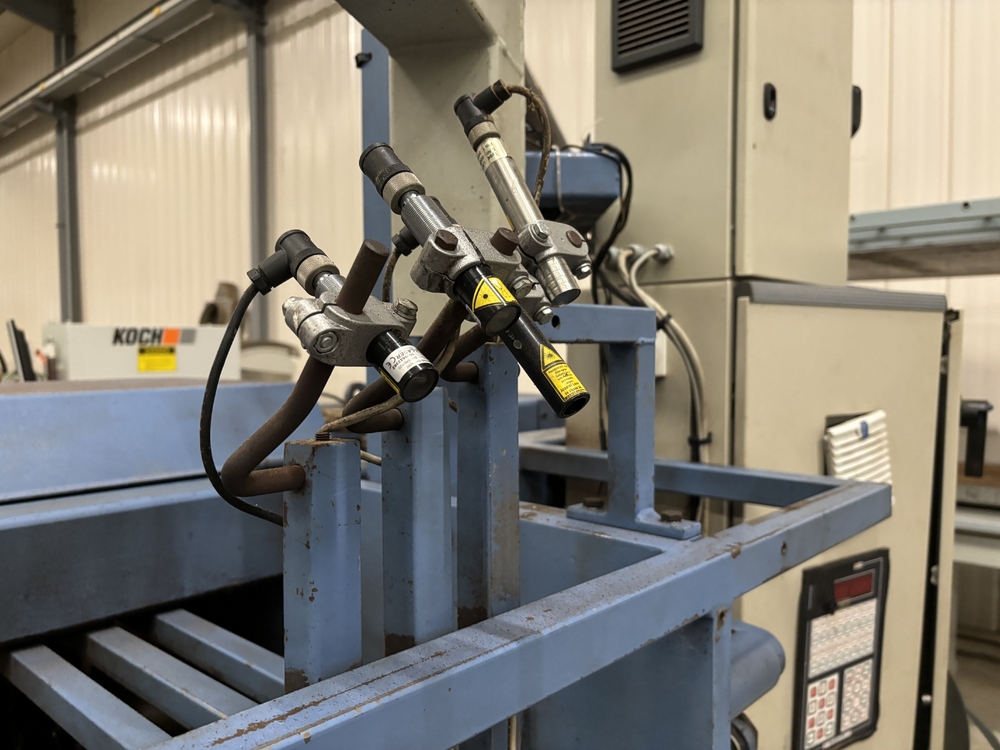

Lasers
Sawing "downstream".

Feed speed: 0-100m/mn

Capacities:
Max. passage height: 110 mm.
Maximum sawing height: 100 mm.
Max passage width: 1 000 mm.
Maximum edging width: 710 mm.
Max distance between 2 adjacent blades : 570 mm.
Minimum distance between blades : 18 mm.
Minimum length of the wood : 650 mm.

Characteristics :

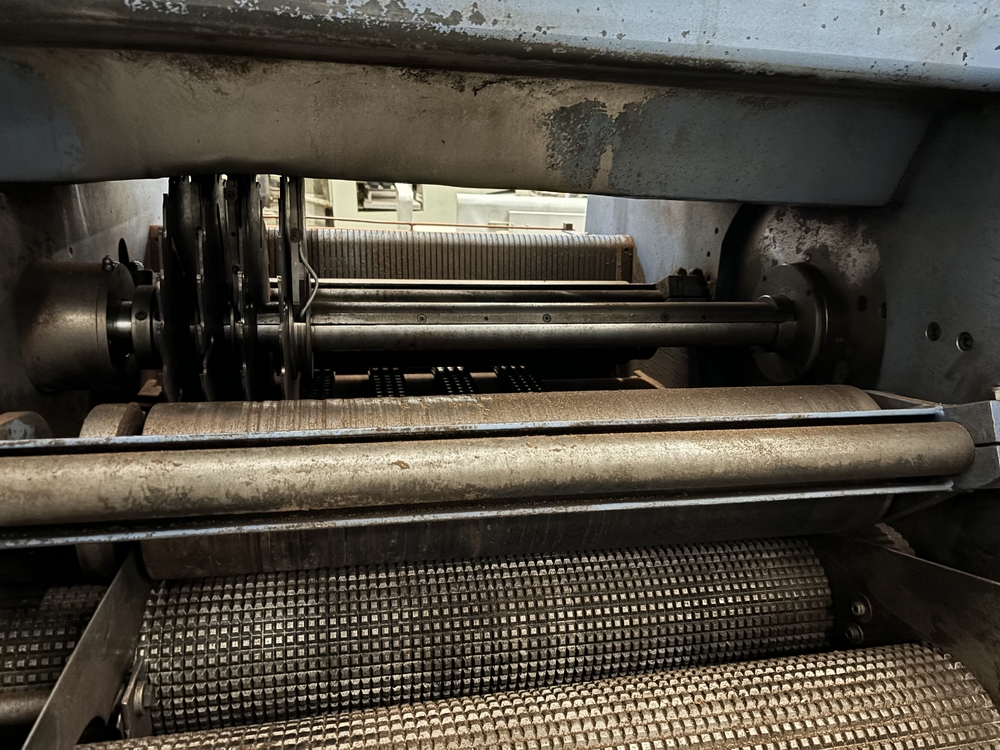

Blade diameter : 400 mm.
Rotation speed : 3750 rpm.
Blade bore : 85 mm.
Blade shaft diameter : 65 mm with counter-bearing
Blade motor power : 55 KW (75 hp).
Power of feed motor : 3 KW (4 hp).

Separator and operator return belt

Slatted belt for slab exit (optional)

Automatic transfer mechanism for 3 strands (optional)

Synchronized 3 strands unloader for introduction on the chainsaw (optional)
