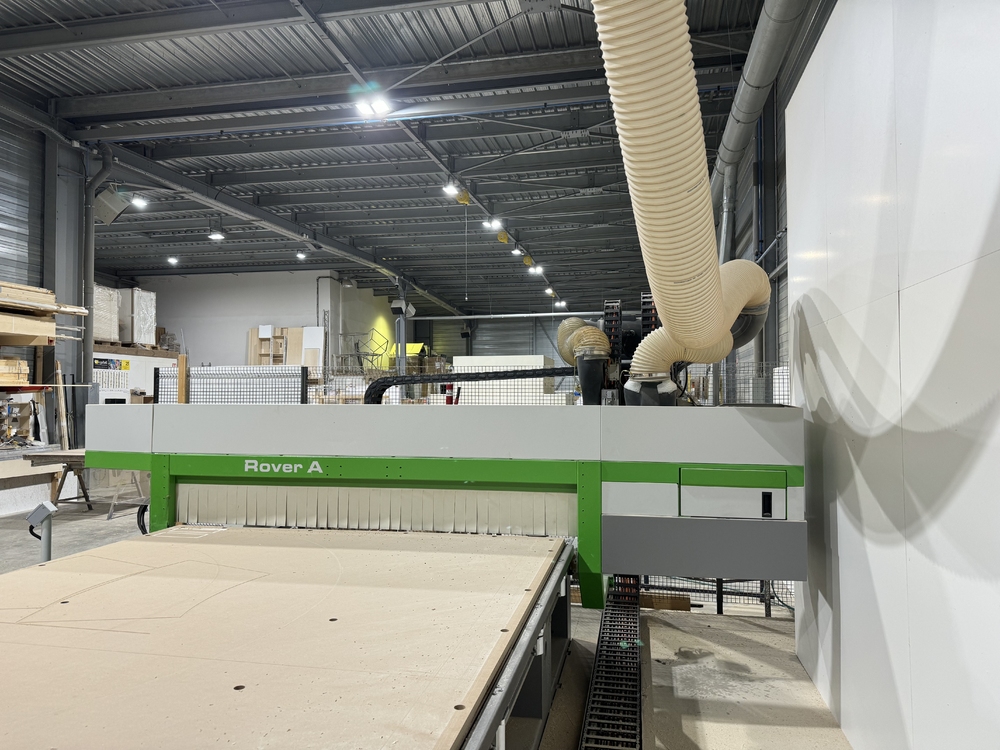

Nesting machining center with full table

X axis travel: 4300 mm
Y axis travel: 2205 mm
Z axis travel: 326 mm

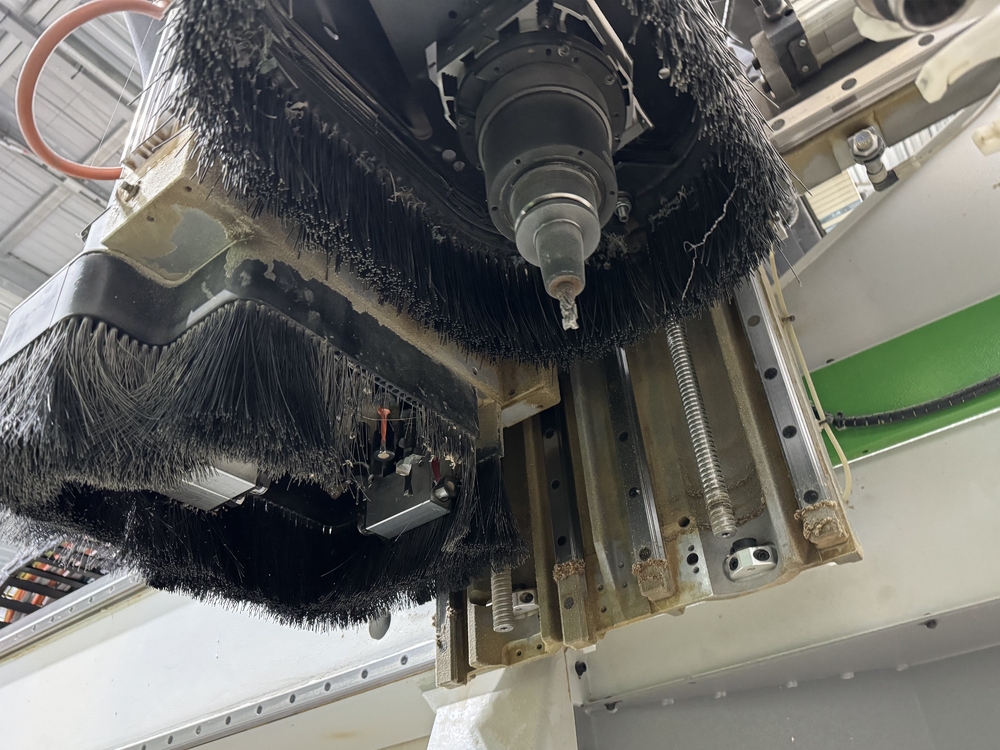

Electrospindle

3-axis spindle, 12 kW

HSK F63 chuck

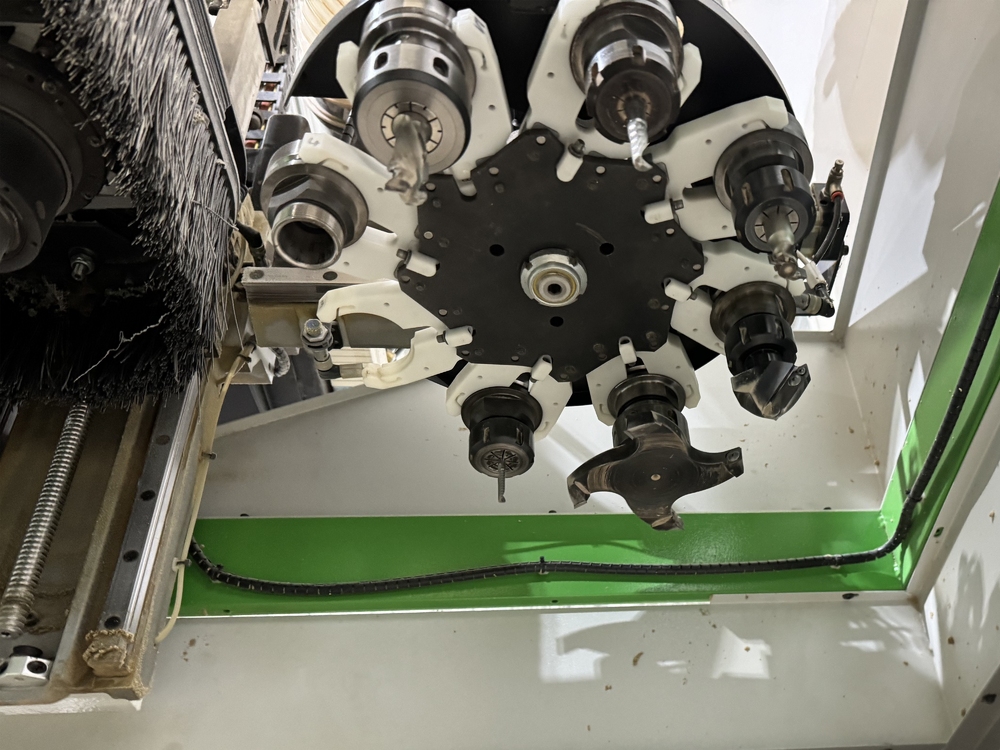

Revolver-type tool magazine, 8 tool holders

BH17L drilling unit

Vertical and horizontal drilling unit + grooving unit

10 vertical drill bits, 32 mm pitch (7 X-oriented and 3 Y-oriented)

6 horizontal drill bits, 32 mm pitch (2 X-oriented and 1 Y-oriented)

1 grooving blade, diameter 120 mm, for grooving in X (useful cut 25 mm)

Independent Z drilling unit to optimize machining times

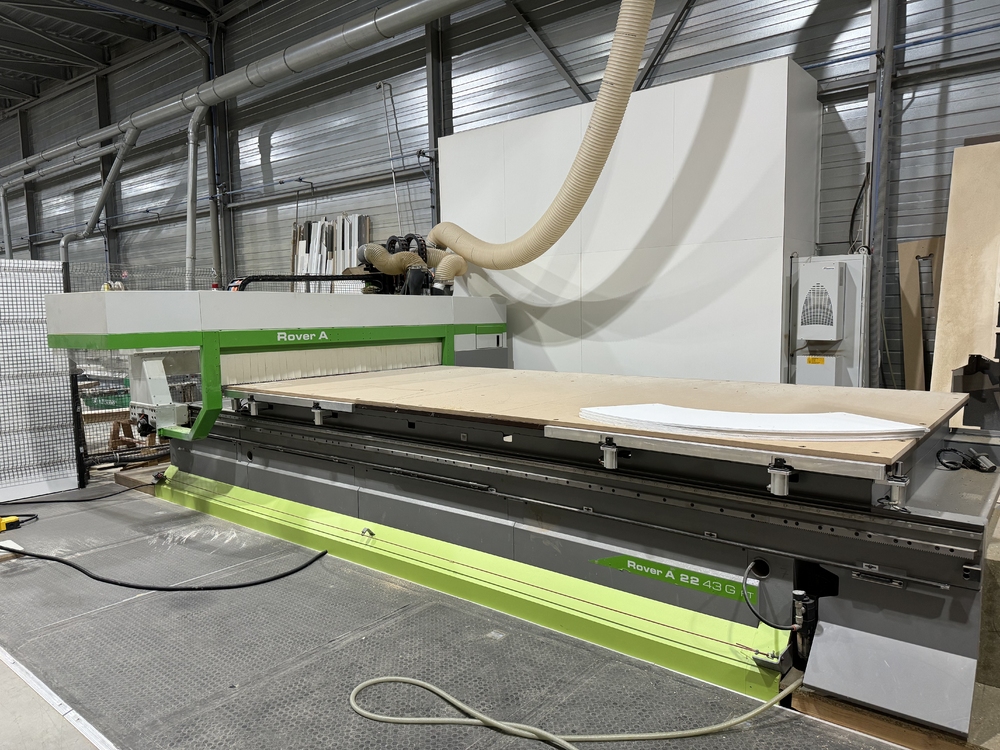

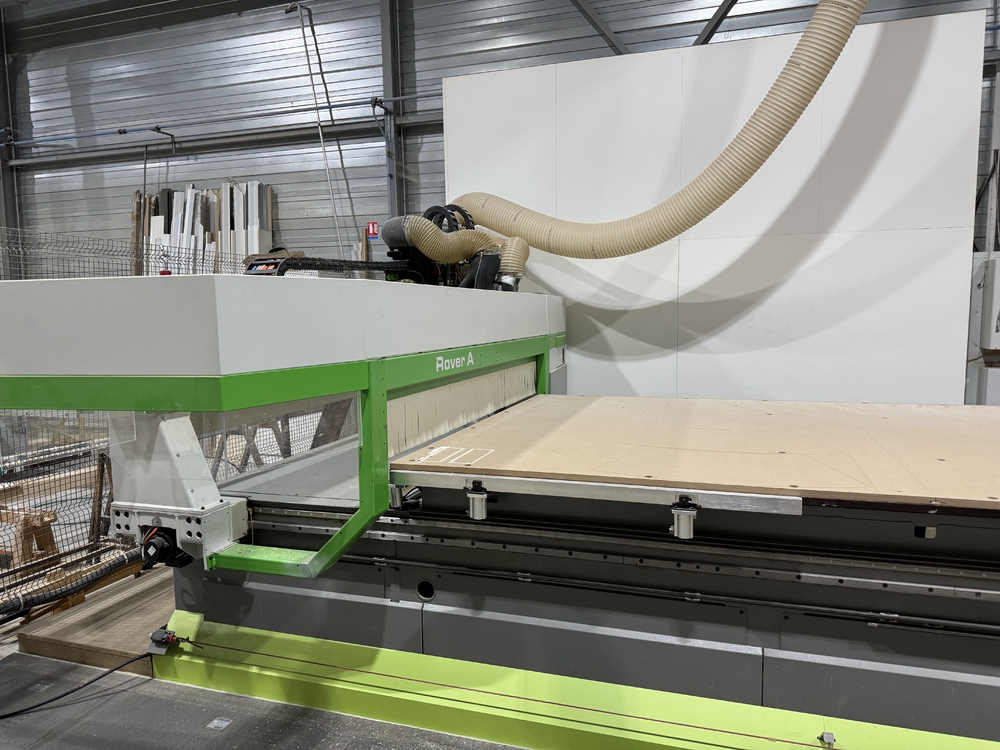

9-area vacuum table with MDF martyr panel

Rear, front and side (left) reference stops

2 vacuum pumps 300 m³/h

Controls :

On Windows PC

BiesseWorks Advanced software machine version

Programming and optimization of drilling, cutting, milling, toolpaths and tool changes

Customized parametric macros

Network and/or USB file imports

3D part and toolpath simulator

Parametric programming of the workpiece

Martyr table surface program

Collision management

Tooling set and parametric cones supplied

2 BiesseWorks office version software keys supplied
